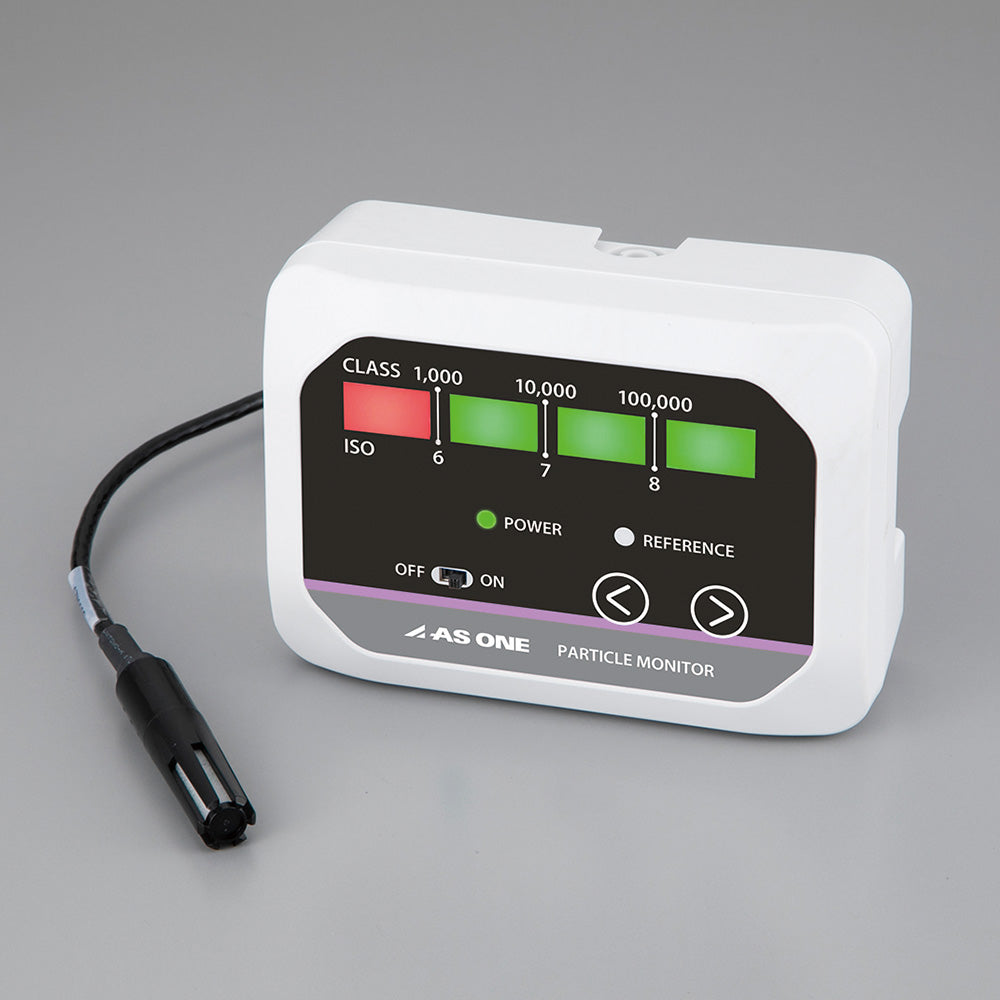

Particle monitor (0.5µm type) PA05H 1 piece

It is possible to visualize air cleanliness management in factories, precision parts manufacturing processes, and work environments where cleanliness is required. Cleanliness class is displayed in four levels from 1,000 to 100,000 using LEDs. By using the dedicated software, it is possible to record particles (external output possible). An optional temperature and humidity sensor can be connected and recorded using dedicated software (external output possible). Very compact and easy to install. Detectable particle size: 0.5 μm or more Size (mm): 120 x 46.5 x 87 Measurement method: light scattering method Light source: Laser diode Sampling method: Fan suction Detection concentration: Class 1,000 to 100,000 *Class 1,000 is a reference value Output units: pcs/m3 (default), pcs/cf, pcs/L Sensor output value: 300s total value Data update time: 1s Power supply voltage: 12-24V Temperature and humidity measurement function: Yes Reference display: 〇 (several um or more) Analog output: × Digital communication: Yes (Ethernet, Wi-Fi) Alarm output: Yes Weight: Approx. 0.21kg Accessories: AC adapter Click here to download the dedicated application (v81_1_0) For information on MAC/IP display mode, please click here
