TE Connectivity

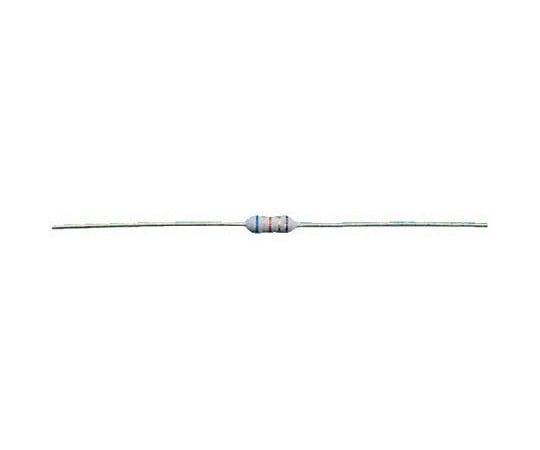

Fuse resistor FRN50S series 470Ω 0.5W ±5% 1 bag (10 pieces) FRN50J470R/S 1 bag (10 pieces)
Fuse resistor FRN50S series 470Ω 0.5W ±5% 1 bag (10 pieces) FRN50J470R/S 1 bag (10 pieces)
Regular price
¥143
Regular price
Sale price
¥143
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This series of fusible resistors will melt in under 60 seconds at 16 times the rated load.
0.5W, Fusible, Flame-retardant Resistor, Axial
FRN50S series, identifiable by gold band, quantity: 1 bag (10 pieces)
Resistance: 470Ω
Rated power: 0.5W
Tolerance: ±5%
Series: FRN50S
Case Style: Formal
Temperature coefficient: ±350 ppm/°C
Termination Style: Axial
Dimensions: 2.3 (Dia.) x 6.3mm
Length: 6.3mm
Diameter: 2.3mm
Minimum temperature coefficient: -350ppm/°C
RoHS Compliance Status: Compliant
Code number: 267-1761
