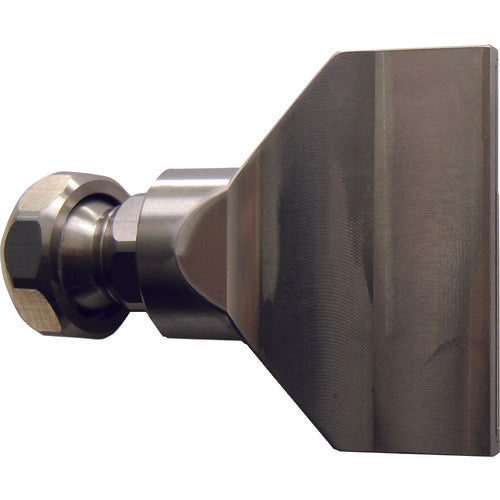

Hiltline Stainless Steel Coolant Hose (1/2 Hose System) Flare Nozzle Straight Jet Width 58 x Thickness 0.4 2DU-SL-65-GS-0.4 1 pc

Catalog number: 2DU-SL-65-GS-0.4 Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: ● Number of nozzles: 1 ● Nozzle length (mm): 82 ● Maximum liquid pressure (kg/cm2): 5Mpa ● Total length (mm): 82 ● Nozzle width (mm) h1: 58 ● Nozzle width (mm) h2: 64 ● Thickness (mm): 0.4 ● Inner diameter (mm): 1/2 ● Nozzle width (mm): 58 x 0.4 ● Nominal size: 1/2 ● Maximum pressure (MPa): 5 ● Flow rate (L/min): 60 ● Type: Straight jet ● Suitable fluids: Acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ● Product name: Flare nozzle straight jet Width 58 x thickness 0.4●Length (mm): 82.0●Usable temperature: -30℃ to +100℃●Maximum operating pressure (liquid) 5Mpa●Maximum operating flow rate up to 60l/min●Straight type (2DU-SL25, SL-25-SS, SL-50 are wide types) Material/Finish: ●SUS303 Note: ●The maximum operating pressure and maximum operating flow rate data are based on the use of a hose with an inner diameter of φ5.8 for the 1/4 system and a round nozzle with a tip diameter of φ6.5 for the 1/2 system. ●The chemical resistance of the applicable fluid indicates the chemical resistance of the material itself of the product, and does not guarantee the chemical resistance of this product.
