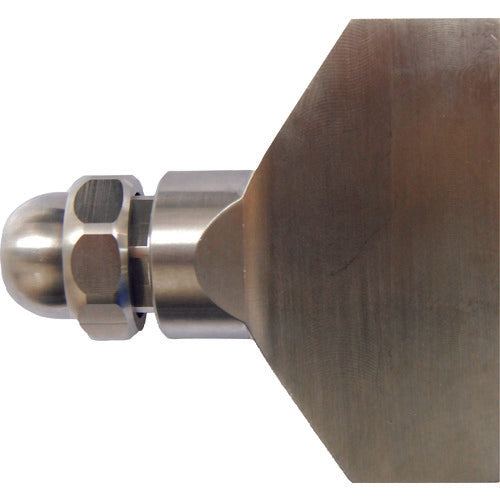

Hiltline Stainless Steel Coolant Hose (1/2 Hose System) Flare Nozzle Straight Jet Width 70 x Thickness 2.0 2DU-SL-76-GS 1 pc

Catalog number: 2DU-SL-76-GS Features: ● Made of durable SUS303, it has a significantly longer life than plastic coolant hoses. ● Screw-type, so the retention strength is significantly improved compared to plastic coolant hoses. ● High retention strength means that the hose shape will not change due to interference from high-pressure coolant, machine vibration, or cutting chips. Applications: ● For cooling the tip of tools during cutting and grinding processes. ● Can also be used with air. Specifications: ● Number of nozzles: 1 ● Nozzle length (mm): 82 ● Maximum liquid pressure (kg/cm2): 5Mpa ● Total length (mm): 82 ● Nozzle width (mm) h1: 70 ● Nozzle width (mm) h2: 76 ● Thickness (mm): 2.0 ● Length (mm): 82.0 ● Product name: Flare nozzle straight jet Width 70 x thickness 2.0●Nozzle width (mm): 70 x 2.0●Inner diameter (mm): 1/2●Type: Straight jet●Flow rate (L/min): 60●Nominal size: 1/2●Compatible fluids: Acetone, aqueous ammonia, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene●Maximum operating pressure (MPa): 5●Usable temperature: -30°C to +100°C●Maximum operating pressure (liquid) 5Mpa●Maximum operating flow rate ~60l/min●Straight type (2DU-SL25, SL-25-SS, SL-50 are wide types) Material/Finish:●SUS303 Note:●The data for maximum operating pressure and maximum operating flow rate is based on the use of a hose inner diameter of φ5.8 for the 1/4 system and a round nozzle tip diameter of φ6.5 for the 1/2 system. ●The chemical resistance of applicable fluids indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
