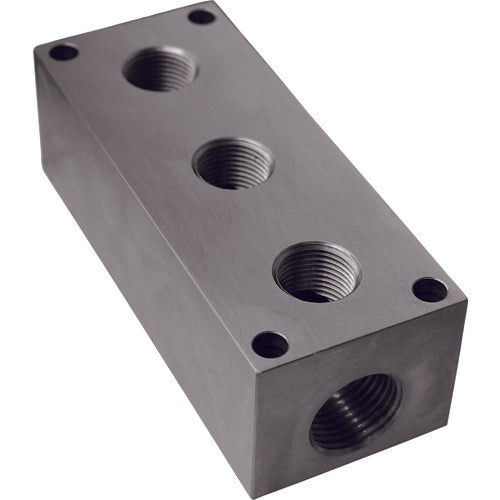

Hiltline Stainless Steel Coolant Hose (1/2 Hose System) Manifold Block 38PT VB-3-38-PT 1 pc

Catalog number: VB-3-38-PT Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength prevents the hose shape from changing due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling the tip of tools during cutting and grinding processes. ● Can also be used with air. Specifications: ●Maximum liquid pressure (kg/cm2): 5Mpa ●Total length (mm): 110 ●Length (mm): 110.0 ●Inner diameter (mm): 1/2 ●Shape: Block (PT thread) ●Nominal size: 1/2 ●Height (mm): 36.0 ●Flow rate (L/min): 60 ●Product name: Manifold block 38PT ●Compatible fluids: Acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ●Width (mm): 45.0 ●Maximum pressure (MPa): 5 ●Usable temperature: -30°C to +100°C ●Maximum pressure (liquid) 5Mpa ●Maximum flow rate ~60l/min Material/Finish: ●SUS303 Note: ●The data for maximum operating pressure and maximum operating flow rate is based on the case where a hose with an inner diameter of φ5.8 is used for the 1/4 system and a round nozzle with a tip diameter of φ6.5 is used for the 1/2 system. ●The chemical resistance of the applicable fluid indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
