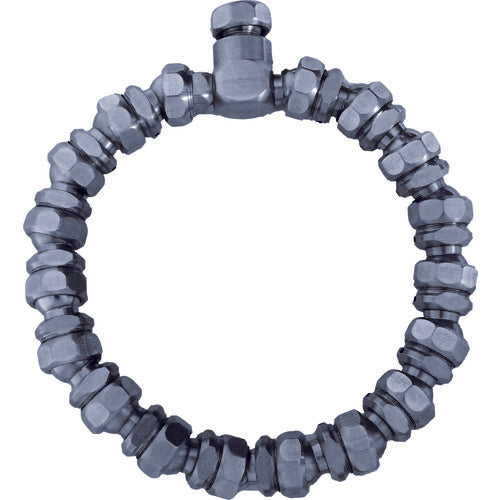

Hiltline Circle Shower Nozzle Set for Stainless Steel Coolant Hose (1/4 Hose System) 1GS-R 1 S

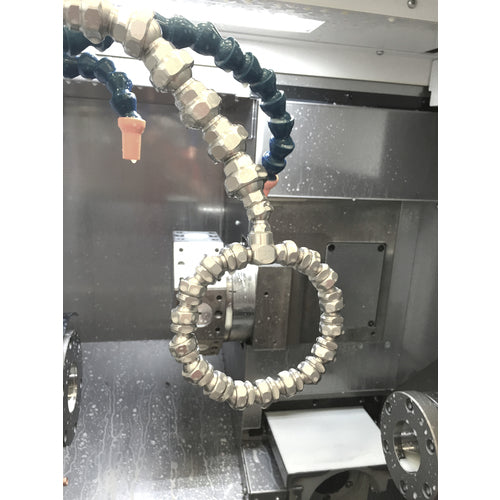

Catalog number: 1GS-R Features: ● Made of highly durable SUS306, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength prevents the hose shape from changing due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling the tool tip during cutting and grinding processes. ● Can also be used with air. Specifications: ● Number of nozzles: 17 ● Hole diameter (mm): 1.6 ● Maximum liquid pressure (kg/cm2): 5Mpa ● Outer diameter (mm): 80 ● Set contents: 1DU-R x 17, 1WV-R x 1 ● Name: Circle shower nozzle set ● Inner diameter (mm): 80 ● Maximum pressure (MPa): 5 ● Flow rate (L/min): 60 ● Inner diameter (mm): 1/4 ● Length (mm): 80 ● Nominal size: 1/4 ● Suitable fluids: acetone, aqueous ammonia, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ● Usable temperature: -30°C to +100°C ● Maximum pressure (liquid) 5Mpa ● Maximum flow rate up to 60l/min Material/Finish: ● SUS303 Set contents/Accessories: ● 1DU-R x 17, 1WV-R x 1 Note: ●The data for maximum operating pressure and maximum operating flow rate is based on the case where a hose with an inner diameter of φ5.8 is used for the 1/4 system and a round nozzle with a tip diameter of φ6.5 is used for the 1/2 system. ●The chemical resistance of the applicable fluid indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
