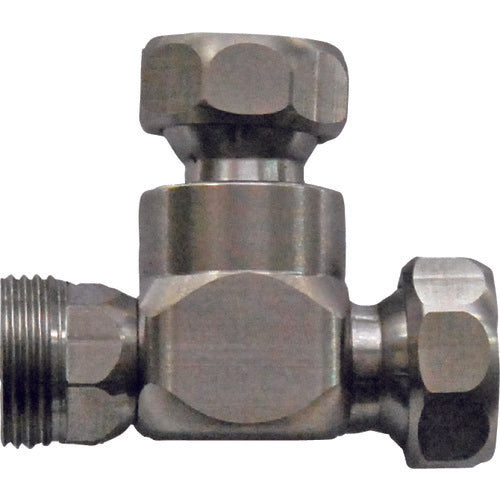

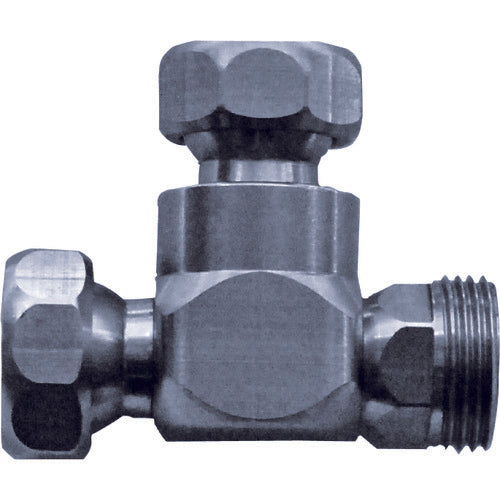

Hiltline Stainless Steel Coolant Hose (1/4 Hose System) Circle Shower Nozzle T-Joint 1WV-R 1 Piece

Catalog number: 1WV-R Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength prevents the hose shape from changing due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling the tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: ●Maximum liquid pressure (kg/cm2): 5Mpa ●Total length (mm): 37 ●Set contents: T-joint for 1GS-R ●Product name: T-joint for circle shower nozzle ●Inner diameter (mm): 1/4 ●Length (mm): 37 ●Circumference inner diameter (mm): - ●Nominal size: 1/4 ●Maximum operating pressure (MPa): 5 ●Compatible fluids: acetone, aqueous ammonia, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ●Flow rate (L/min): 60 ●Usable temperature: -30°C to +100°C ●Maximum operating pressure (liquid): 5Mpa ●Maximum operating flow rate: up to 60l/min Material/Finish: ●SUS303 Note: ●The data for the maximum operating pressure and maximum operating flow rate is based on the use of a hose inner diameter of φ5.8 for the 1/4 system and a round nozzle tip diameter of φ6.5 for the 1/2 system. ●The chemical resistance of applicable fluids indicates the chemical resistance of the product material itself and does not guarantee the chemical resistance of this product.
