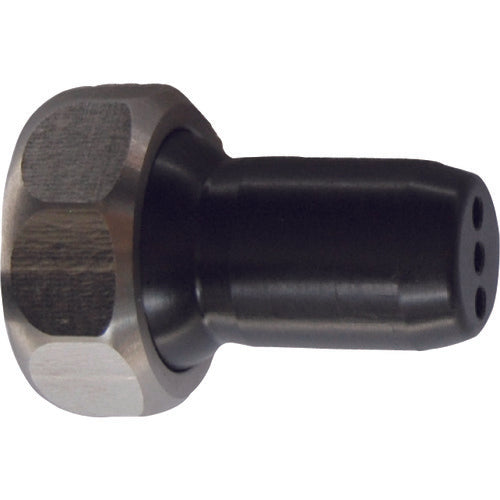

Hiltline Resin round nozzle for stainless steel coolant hose (1/4 hose system) Φ1.6 x 3 holes (with adjustment nut) KU-1DU-3-16 1 piece

Catalog number: KU-1DU-3-16 Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: ● Number of nozzles: 1 ● Nozzle length (mm): 22 ● Hole diameter (mm): 1.6 ● Maximum operating liquid pressure (kg/cm2): 5Mpa ● Overall length (mm): 22 ● Number of holes: 3 ● Nozzle angle: Standard ● Material: Resin ● Product name: Resin round nozzle φ1.6 x number of holes 3 (with adjustment nut) ● Nozzle inner diameter (mm): 1.6 x number of holes 3 ● Flow rate (L/min): 60 ● Length (mm): 22 ● Inner diameter (mm): 1/4 ● Nominal size: 1/4 ● Maximum operating pressure (MPa): 5 ● Number of holes (pcs): 3 ● Compatible fluids: Acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ● Usable temperature: -30°C to +100°C Material/Finish: ● SUS303 ● Polyacetal Set contents/accessories: ●1/4 adjustment nut Note: ●The data for maximum operating pressure and maximum operating flow rate is based on the case where a hose with an inner diameter of φ5.8 is used for the 1/4 system and a round nozzle with a tip diameter of φ6.5 is used for the 1/2 system. ●The chemical resistance of the applicable fluid indicates the chemical resistance of the material itself and does not guarantee the chemical resistance of this product.
