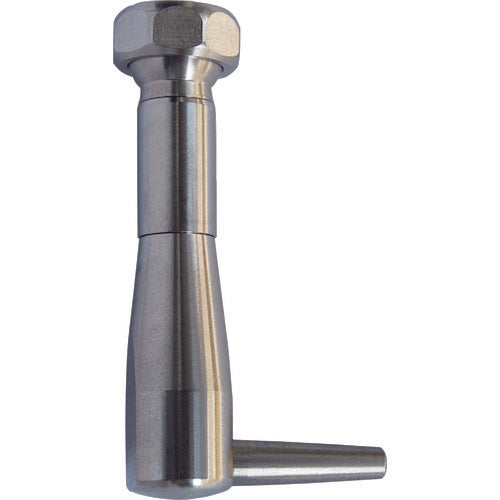

Hiltline Stainless Steel Coolant Hose (1/4 Hose System) 90° Round Long Nozzle 55L with Replaceable Tip Nozzle 5L, 10L, and 20L 1HA-DU-2 1 pc

Catalog number: 1HA-DU-2 Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: ●Number of nozzles: 1 ●Hole diameter (mm): 2.2 ●Maximum liquid pressure (kg/cm2): 5Mpa ●Nozzle tip hole diameter: 90° 2.2 ●Total length (mm): 55.5 ●Nozzle angle (°): 90 ●Compatible fluids: acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ●Flow rate (L/min): 60 ●Inner diameter (mm): 1/4 ●Product name: 90° round long nozzle 55L with replaceable tip nozzles of 5L, 10L, and 20L each ●Maximum pressure (MPa): 5 ●Length (mm): 55 ●Nominal size: 1/4 ●Usable temperature: -30°C to +100°C ●Maximum pressure (liquid) 5Mpa ●Maximum flow rate up to 60l/min Material/Finish: ●SUS303 Set contents/accessories: ● Tip nozzle 5L, 10L, 20L Note: ● The data for maximum operating pressure and maximum operating flow rate is based on the use of a hose with an inner diameter of φ5.8 for the 1/4 system and a round nozzle with a tip diameter of φ6.5 for the 1/2 system. ● The chemical resistance of the applicable fluid indicates the chemical resistance of the material itself and does not guarantee the chemical resistance of this product.
