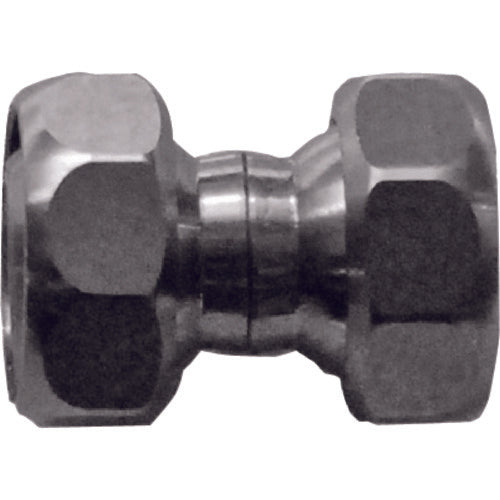

Hiltline Double Ball Joint Hose 19L 1GE-DK 1 pc

Catalog number: 1GE-DK Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: Maximum liquid pressure (kg/cm2): 5Mpa Total length (mm): 19 Product name: Double ball joint hose Flow rate (L/min): 60 Suitable fluids: Acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene Length (mm): 19 Nominal size: 1/4 Inner diameter (mm): 1/4 Maximum pressure (MPa): 5 Usable temperature -30°C to +100°C Maximum pressure: 5Mpa (liquid) Maximum flow rate: ~60l/min Material/Finish: SUS303 Note: The maximum pressure and flow rate data are for 1/4 systems with a hose inner diameter of φ5.8 and 1/2 systems with a round nozzle tip diameter of φ6.5. The chemical resistance of the suitable fluid indicates the chemical resistance of the material itself and does not guarantee the chemical resistance of this product.
