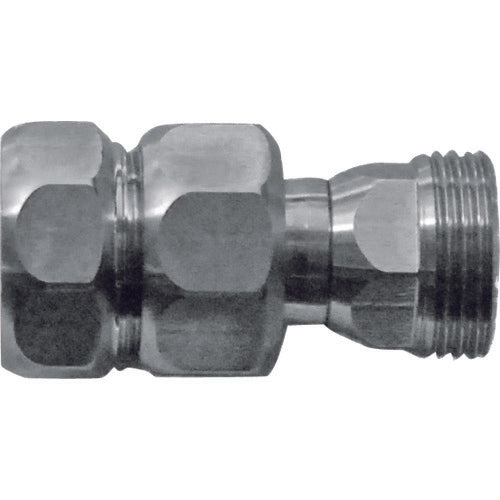

Hiltline One-touch Coupler 2FP 1 piece

Catalogue number: 2FP Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. Applications: ● For cooling tool tips during cutting and grinding processes. ● Can also be used with air. Specifications: Maximum liquid pressure (kg/cm2): 5Mpa Total length (mm): 44 Length (mm): 43.9 Inner diameter (mm): 1/2 Nominal size: 1/2 Maximum pressure (MPa): 5 Flow rate (L/min): 60 Product name: One-touch coupler Suitable fluids: Acetone, ammonia water, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene Usable temperature: -30°C to +100°C Maximum pressure (liquid): 5Mpa Maximum flow rate: up to 60l/min Material/Finish: SUS303 Note: The maximum pressure and maximum flow rate data are for the 1/4 system with a hose inner diameter of φ5.8 and the 1/2 system with a round nozzle tip diameter of φ6.5. The chemical resistance of the suitable fluid indicates the chemical resistance of the material itself and does not guarantee the chemical resistance of this product.
