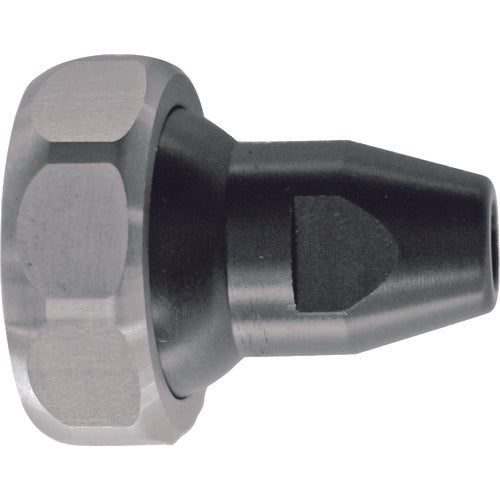

Hiltline Plastic Round Nozzle φ6.5 (with Adjustment Nut) KU-2DU-65 1 pc

Catalog number: KU-2DU-65 Features: ● Made of highly durable SUS303, it has a significantly longer life than plastic hoses. ● Screw-type design provides significantly improved retention strength compared to plastic coolant hoses. ● High retention strength means the hose shape will not change due to high-pressure coolant, machine vibration, or interference from cutting chips. ● Can also be used with air. Applications: ● For cooling tool tips during cutting and grinding processes. Specifications: ● Number of nozzles: 1 ● Nozzle length (mm): 33 ● Hole diameter (mm): 6.5 ● Maximum liquid pressure (kg/cm2): 5Mpa ● Total length (mm): 33 ● Material: Resin ● Maximum pressure (MPa): 5 ● Suitable fluids: Acetone, aqueous ammonia, drinking water, ethanol, ethyl ether, gasoline, nitric acid, vegetable oil, sodium hydroxide, petroleum, cutting oil, kerosene, trichloroethylene, toluene, benzene ● Product name: Resin round nozzle φ6.5 (with adjustment nut) ● Orifice (mm): 6.5 ● Flow rate (L/min): 60 ● Nozzle inner diameter (mm): 6.5 ● Nominal size: 1/2 ● Inner diameter (mm): 1/2 ● Length (mm): 33.0 ● Usable temperature: -30℃ to +100℃ ● Maximum pressure (liquid) 5Mpa ● Maximum flow rate ~60l/min Material/Finish: ● SUS303 ● Polyacetal Set contents/accessories: ●1/2 adjustment nut Note: ●The data for maximum operating pressure and maximum operating flow rate is based on the case where a hose with an inner diameter of φ5.8 is used for the 1/4 system and a round nozzle with a tip diameter of φ6.5 is used for the 1/2 system. ●The chemical resistance of the applicable fluid indicates the chemical resistance of the material itself of the product, and does not guarantee the chemical resistance of this product.
