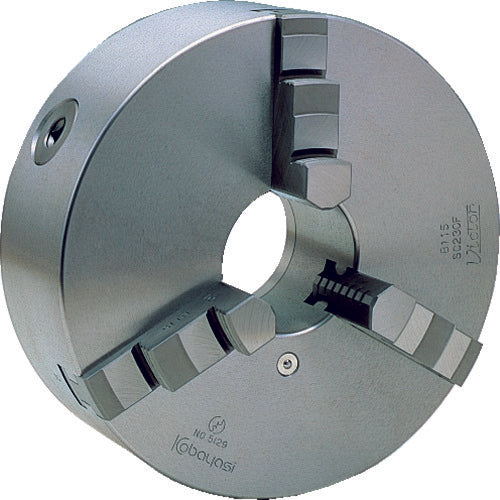

Victor Scroll Chuck SC165F 6 inch 3 jaws Integrated jaw SC165F 1 unit

Catalog number: SC165F Features: ●The jaws are heat-treated for high hardness, making them extremely durable. ●The inner and outer jaws can be used interchangeably, making them extremely economical. Applications: ●Mainly for lathe processing. Specifications: ●Chuck outer diameter (mm): 167 ●Gripping force (kN): 31 ●External diameter gripping (mm): 3-134 (163) ●Internal diameter gripping (mm): 43-122 (151) ●Jaw shape: Integrated jaws (inner and outer jaws) ●Mounting section conforms to JIS ●Rear mounting with 3 bolts for all sizes ●Integrated hard jaw type (with inner and outer jaws) ●Rear mounting Material/Finish: ●Body: Cast iron (FC300) ●Hard jaws: SCM415 Set contents/Accessories: ●Operation handle x 1 ●Mounting bolts: M10 x 40 x 3 Caution: ●It is possible to grip up to the inside of the ( ), but this is not recommended.
