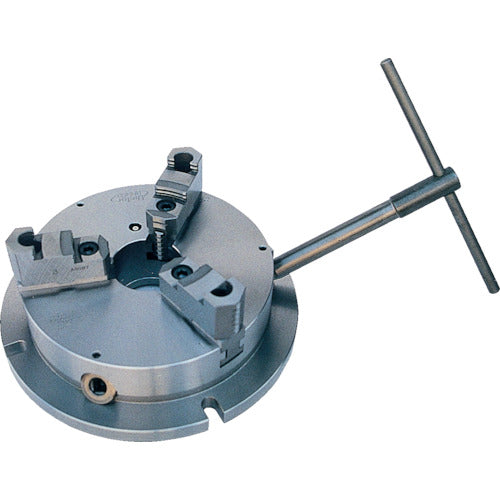

Victor Milling Chuck FCT-10 10 inch 3 jaws split jaw FCT-10 1 unit

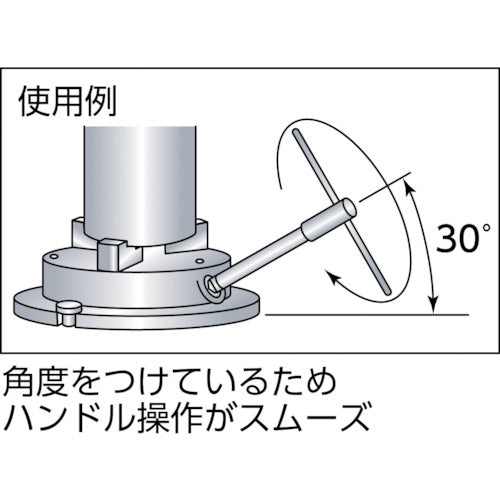

Catalogue number: FCT-10 Features: ●Ideal for machining centers and slotters. Also for milling machines, drill presses, gear cutting machines, and dividing heads. ●Handle insertion angle of 30° allows smooth operation on the table. ●Thin design allows the workpiece's center of gravity to be fixed at a low position, allowing for stable machining. ●Tapered seal structure provides excellent dust resistance. Applications: ●For machining centers, milling machines, drill presses, slotters, gear cutting machines, and dividing heads. Specifications: ●Chuck outer diameter (mm): 255 ●Width (mm): 315 ●Depth (mm): 315 ●Height (mm): 72 ●Gripping force (kN): 46 ●External diameter gripping (mm): 4-210 (264) ●External diameter gripping (max) (mm): 264 ●Inner diameter gripping (mm): 68-189 (242) ●Inner diameter gripping (max) (mm): 242 ●Total height (mm): 126.3 ●Split jaw type (with hard jaw and soft jaw) ●Split jaw (for both inside and outside) ●U-hole machined on the body flange Material/Finish: ●Body: Cast iron (FC300) ●Hard jaw: SCM415 ●Soft jaw: S45C Set contents/Accessories: ●Operation handle x 1 ●Mounting bolt: M14 x 50 x 4 ●Wrench: 10mm x 1, 12mm x 1 ●T-nut: 1614 ●4 pcs. ●Jaws: 1 set ●Washers: 4 pcs. ●Eyebolts: M10 2 pcs. Note: ●It is possible to grasp up to the maximum gripping range, but this is not recommended.
