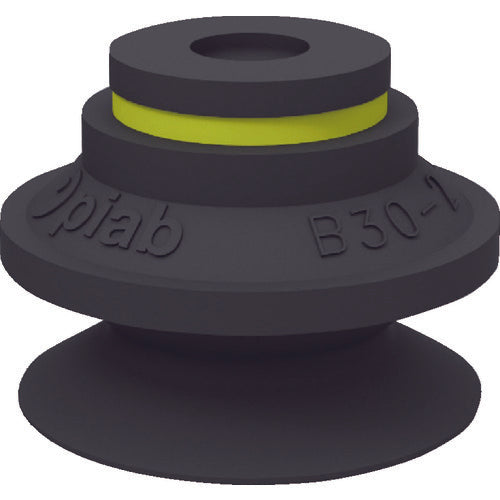

Piab Suction Cup B30-2.10 (01 01 103) B30-2.10 1 piece

Catalog number: B30-2.10 Features: ● Suitable for height adjustment. ● By attaching multiple short bellows to one lifting device, it can handle workpieces with different heights and shapes, such as plates with raised patterns or uneven surfaces. ● Small, thin workpieces can be peeled off by suction. Specifications: ● Pad outer diameter (mm): 34 ● Diameter (mm): 34 ● Height (mm): 26.2 ● Screws: None, rubber parts only ● Lifting force (N): 22.0 @60-kpa ● Operating temperature range (℃): -40 to 110 ● Rubber parts only ● Operating temperature range: -40 to 110℃ Material/Finish: ● Chloroprene
