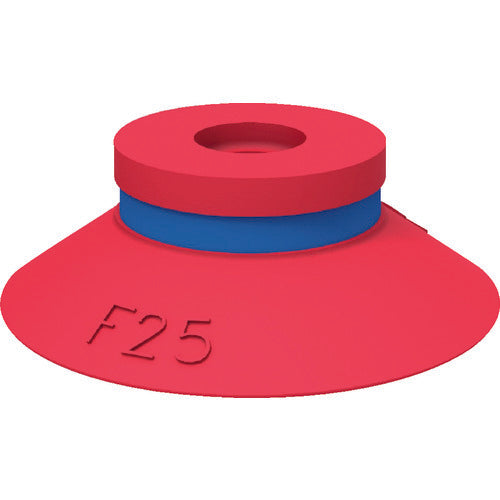

Piab Suction Cup F25.20 (01 01 132) F25.20 1 piece

Catalogue number: F25.20 Features: ● Suitable for flat workpieces. ● Small vertical change for stable lifting. ● Recommended for lifting workpieces vertically to the ground. ● Cleats prevent deformation of thin and easily deformed workpieces and increase friction when lifting workpieces vertically to the ground. Specifications: ● Pad outer diameter (mm): 27 ● Diameter (mm): 27 ● Height (mm): 9 ● Screws: None, rubber parts only ● Operating temperature range (℃): -40 to 200 ● Lifting force (N): 19.5 @60-kPa *When the suction surface is parallel to the ground ● Rubber parts only ● Operating temperature range: -40 to 200℃ Material/Finish: ● Silicone
