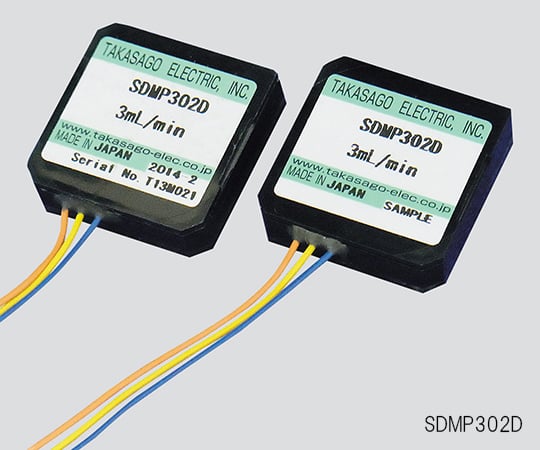

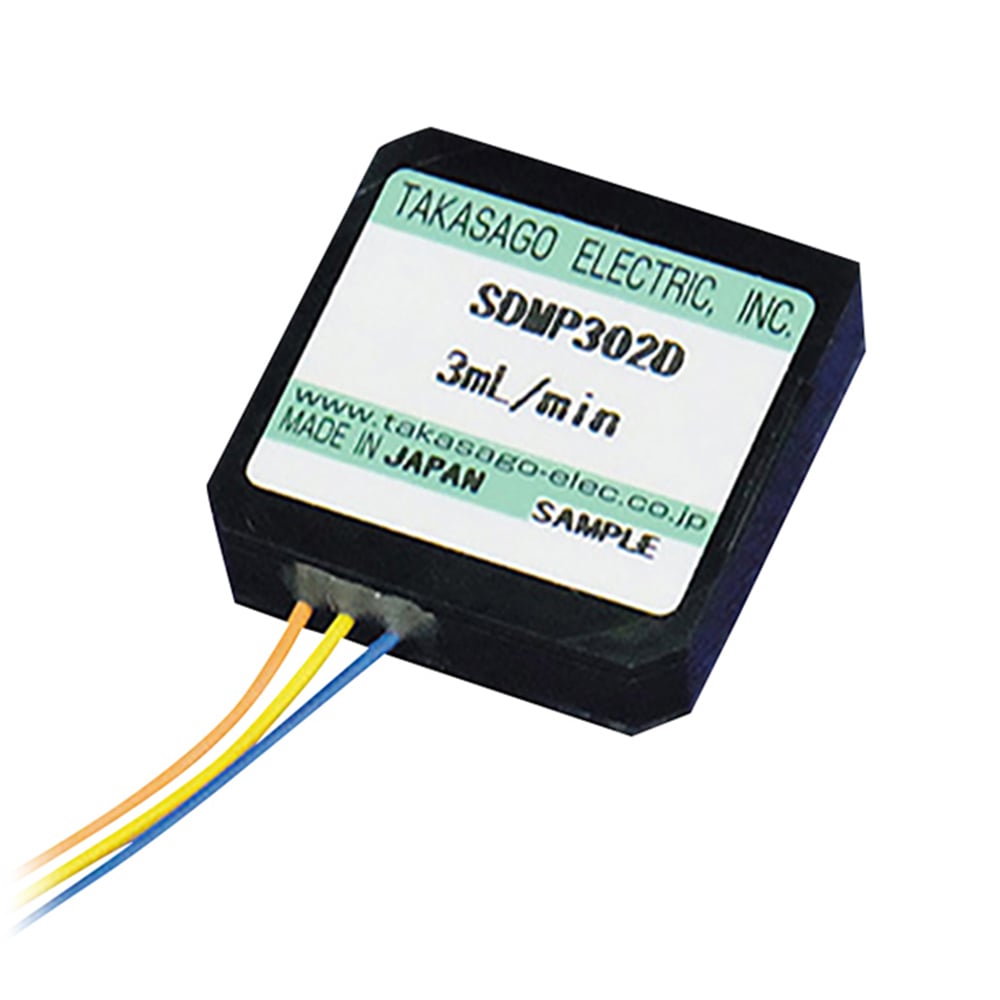

Piezo micro pump (built-in driver) 3mL/min SDMP302D 1 piece

Low noise and low power consumption. The driver is built in so you can dispense it just by connecting it to a power source. Self-priming is possible and no priming is required. No metal is used in the parts that come into contact with liquid. Model number: SDMP302D Standard flow rate (mL/min): 3 Pump type: Piezoelectric diaphragm type Standard pump pressure: 40kPa Suction load pressure: -1.0 kPa (Typ.) Input power: 5VDC±5% Power consumption: Standby/5mW, Operating/120mW Operating temperature: 5 to 50°C Wetted material: Resin part: COC (cyclic olefin copolymer), rubber part: EPDM (ethylene propylene rubber) Input/Output pipe: φ0.5-φ1.2-L2.5mm Size: 25 x 25 x 8.2 mm Weight: 7g
