Low noise and low power consumption.
The driver is built in so you can dispense it just by connecting it to a power source.
Self-priming is possible and no priming is required.

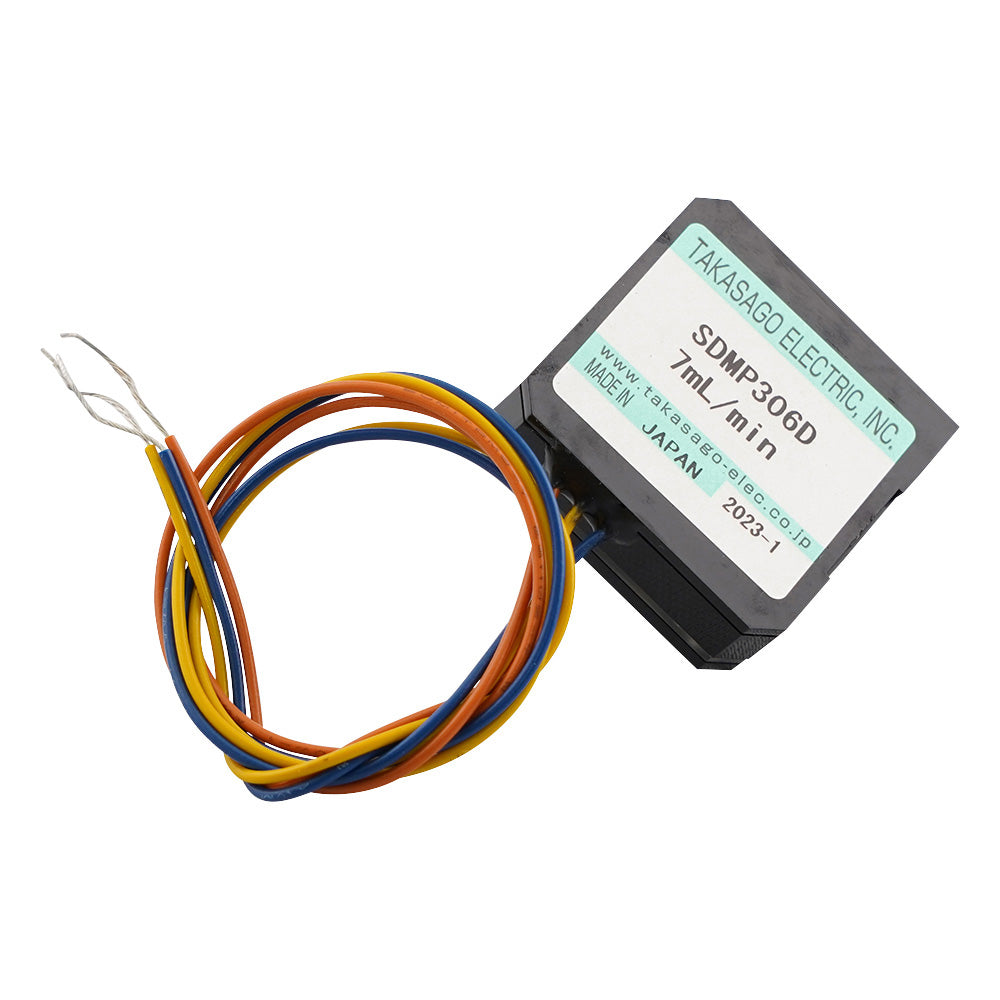

No metal is used in the parts that come into contact with liquid. Model number: SDMP306D
Standard flow rate (mL/min): 7
Pump type: Piezoelectric diaphragm type
Standard pump pressure: 40kPa
Suction load pressure: -1.0 kPa (Typ.)
Input power: 5VDC±5%
Power consumption: Standby/5mW, Operating/120mW
Operating temperature: 5 to 50°C
Wetted material: Resin part: COC (cyclic olefin copolymer), rubber part: EPDM (ethylene propylene rubber)
Input/Output pipe: φ1.3-φ2.1-L3.5mm
Size: 25 x 25 x 8.2 mm
Weight: 7g
