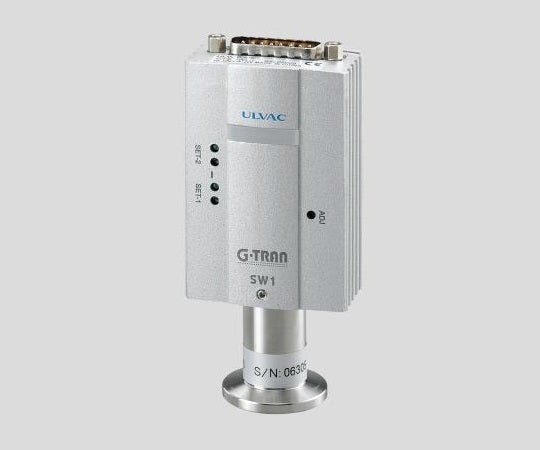

Pirani vacuum gauge (atmospheric pressure type) SW1-1 1 piece
Pirani vacuum gauge (atmospheric pressure type) SW1-1 1 piece
Regular price
¥93,500
Regular price
Sale price
¥93,500
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
It is possible to measure low vacuum range (0.05 to 100,000 Pa), including atmospheric pressure.
The filament material used is platinum (Pt), which is highly durable.
The transducer type SW1-1 can be used without a display. Display (DIN standard): Digital, 2 digits for fractional part/1 digit for exponent part (LED display)
Recorder output: DC0-10V LOG output
Connectable probe: 1/1pc
Applicable gauge head: NW16 flange
Sensor cable length: 5m
Power supply voltage: DC24V AC100-240V (when using adapter)
Size: 46 x 28 x 46mm
Weight: 150g
Measurement range (Pa): 0.05 to 100,000 (5.0 x 10^-2 to 1.0 x 10^5)
Sensor unit (with measuring probe)
Atmospheric pressure type
Model number: SW1-1
