This is a constant temperature Pirani vacuum gauge that uses the thermal conductivity of gas.
Measurements in the low vacuum range (0.4 to 2700 Pa) are possible.

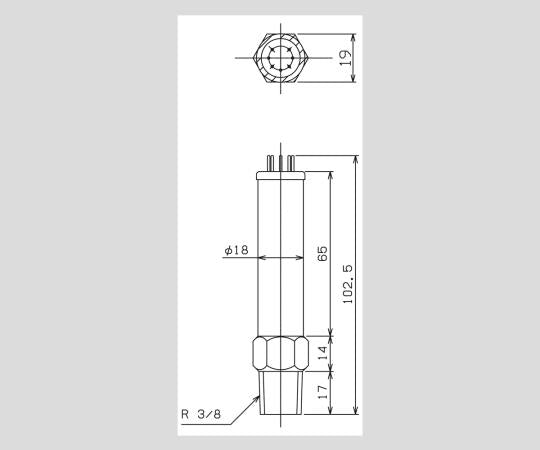

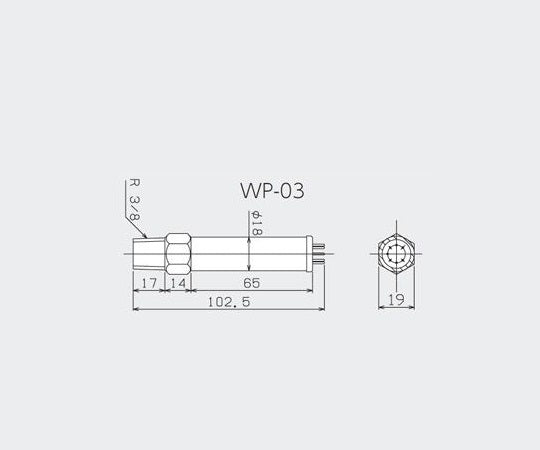

The filament material is platinum (Pt), which has excellent durability. Probe specifications: R3/8
Measurement range: 0.4 to 2700 Pa
Display: Analog
Recorder output: DC0-10mV nonlinear output
Sensor cable length: 5m
Power supply voltage: AC100-240V/10VA
External dimensions: 150 x 134 x 201 m
Mass: 1.4kg

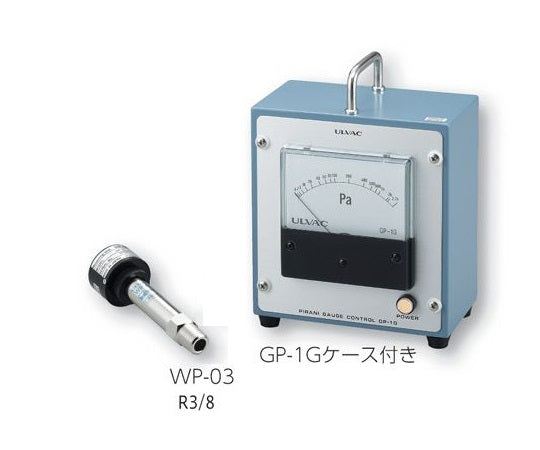

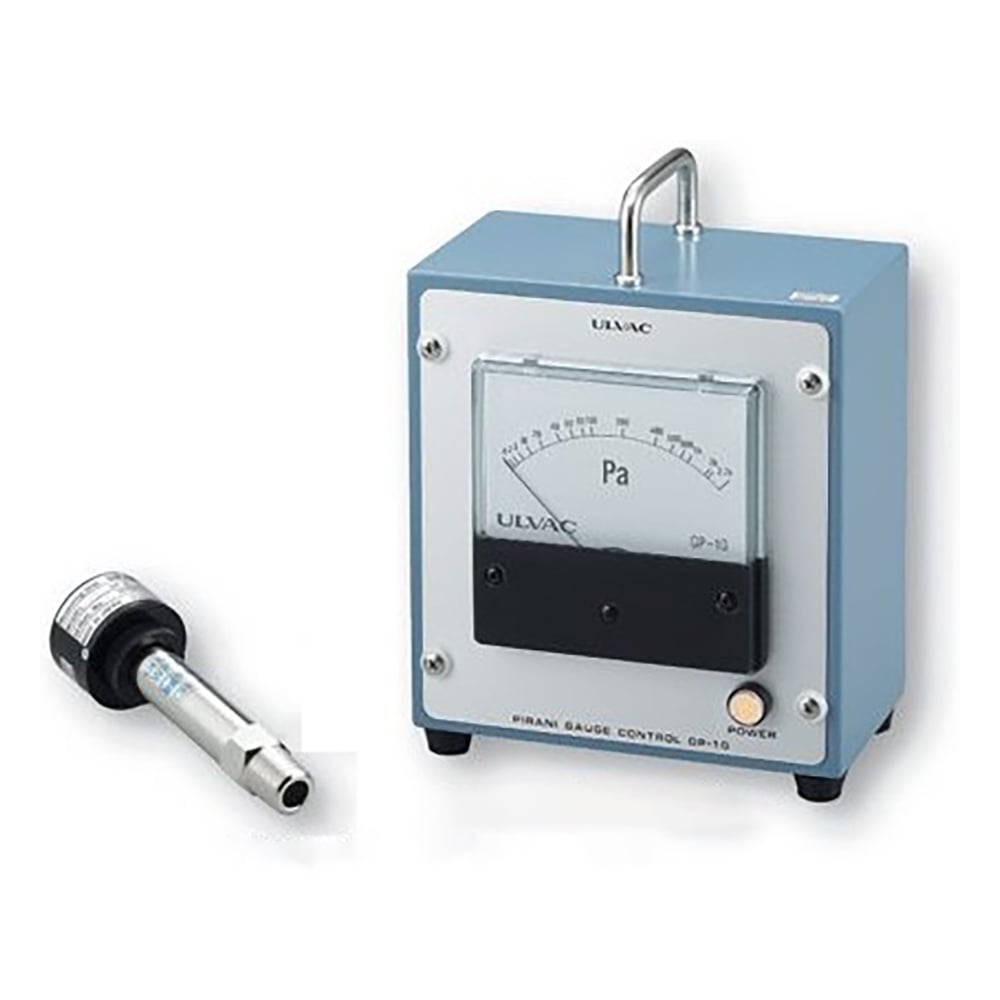

Model number: GP-1G (with case)/WP-03
