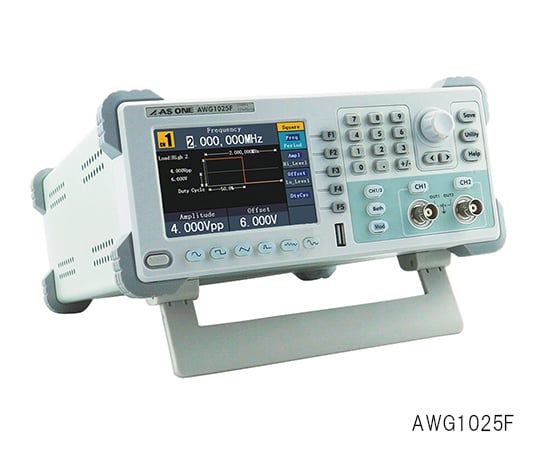

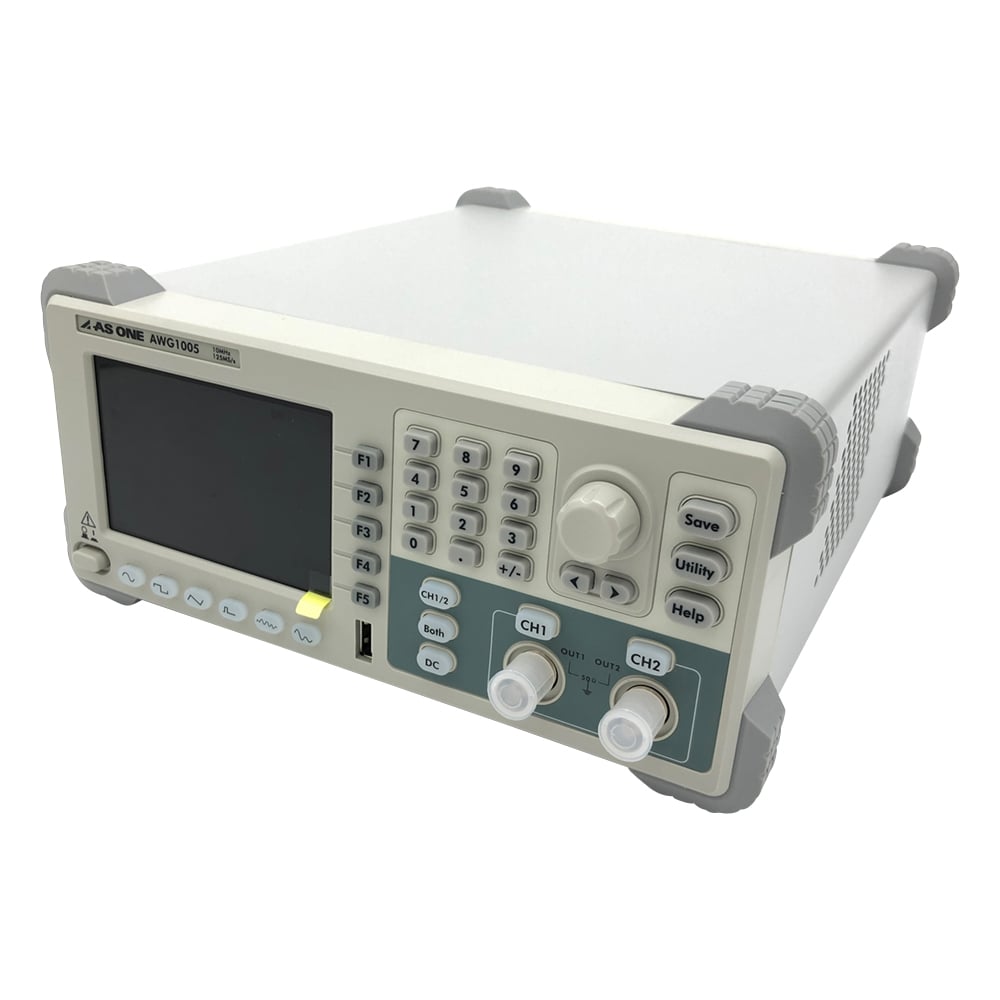

The 3.95-inch TFT LCD display shows relevant settings and parameters in text and graphic form.
It supports 5 basic waveforms and 48 arbitrary waveforms.
26 types of arbitrary waveforms can be stored in non-volatile memory. Frequency range (MHz): 1μHz to 10MHz
Resolution(μHz): 1
Number of analog channels: 2
Output waveforms: sine wave, square wave, pulse wave, ramp wave, noise, ARB (arbitrary wave)
Sample rate: 125MS/s
Record length: 8k points
Vertical resolution: 14 bits
Amplitude (50Ω load): 1mV to 10Vp-p
Amplitude resolution: 1mVp-p/14bits
Frequency: Sine wave/1μHz-25MHz, Square wave/Pulse wave/1μHz to 5MHz, Ramp wave/1μHz to 1MHz, Noise/25MHz (-3dB), ARB (arbitrary wave)/1μHz to 10MHz

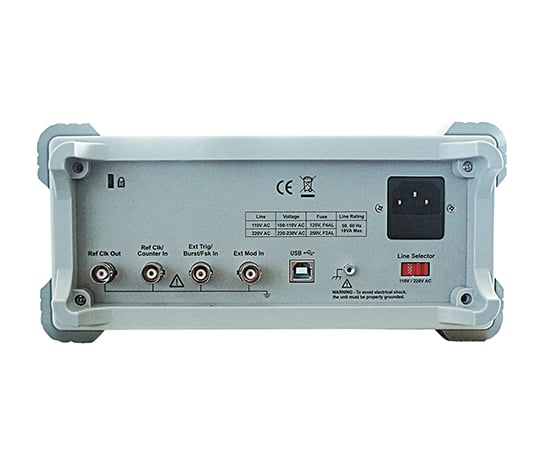

Interface: USB
Size: 235 x 110 x 295 mm
Weight: 3kg
Power supply: AC100V 50/60Hz
