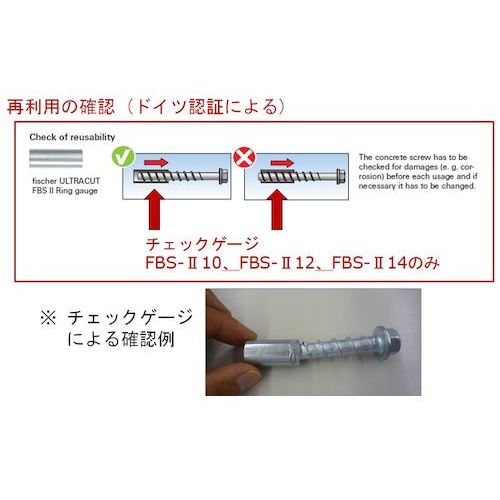

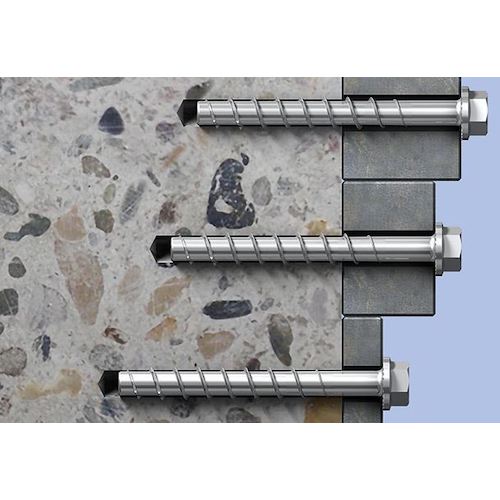

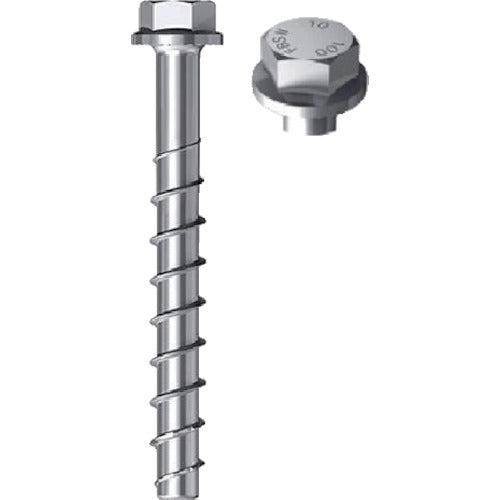

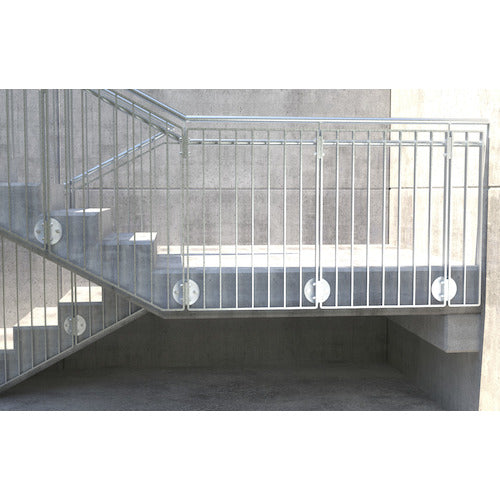

Catalogue number: 536876 Features: * High-strength anchor that does not require driving in. * Can be cast with an impact wrench. * Easy to remove after casting and can be used for temporary construction. Applications: * For concrete and dense stone. * Installation of various mounting frames. * Equipment construction. * Handrail exterior construction, etc. Specifications: ●Screw size: M14 ●Screw length (mm): 100 ●Total length (mm): 115 ●Maximum thickness of attachment (mm): 10 ●Drill diameter (mm): 14 ●Maximum tensile load (kN): 36.33 ●Maximum shear load (kN): 70.27 ●Two-sided width dimension (mm): 21 ●Embedded depth (mm): 85 ●Pre-drilled hole diameter (mm): 14 ●Allowable safety load (kN): 13.2 ●Allowable shear load (kN): 22.1 ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating Note: ●Removal into the same hole is limited to two times. ●When reusing, use a check gauge and only reusable items can be reused.
