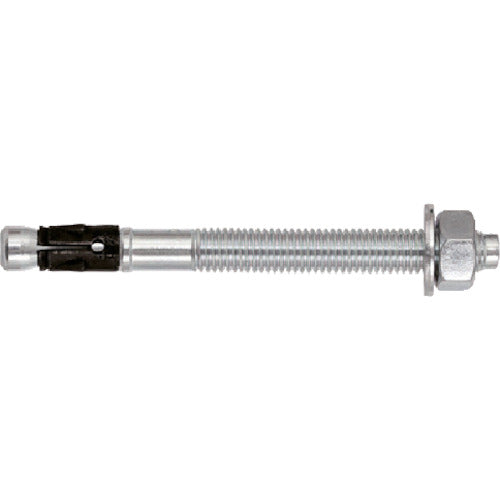

Fischer Bolt Anchor FAZ2 10/50 (20 pieces) 94984 1 box

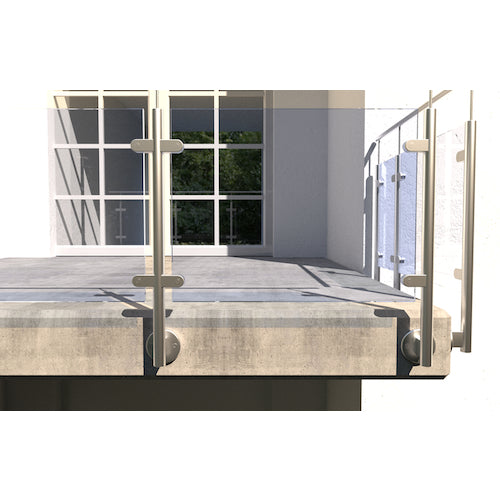

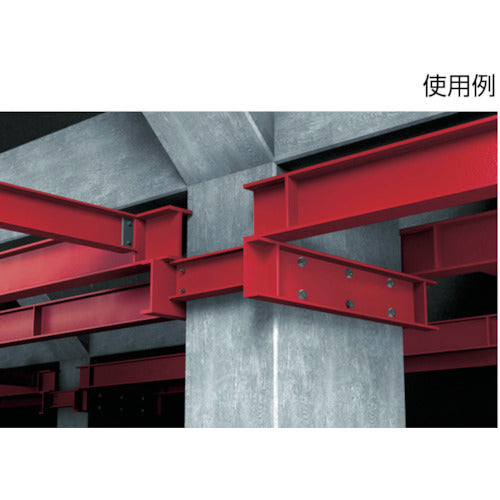

Catalogue number: 94984 Features: * Fischer's original expansion sleeve structure allows for maximum load-bearing capacity. * Shallow embedment allows for shallow drill hole depths, reducing interference with reinforcing bars and enabling quicker construction. * International certification demonstrates maximum safety and best performance. Applications: * For concrete and dense stone. * Installation of various mounting frames. * Facility construction. * Handrail exterior construction, etc. Specifications: ●Screw designation: M10 ●Screw length (mm): 93 ●Total length (mm): 135 ●Maximum thickness of object to be attached (mm): 50 ●Drill diameter (mm): 10 ●Standard installation torque (N・m): 45 ●Maximum tensile load (kN): 7.6 ●Maximum shear load (kN): 11.4 ●Effective embedment depth (mm): 60 ●Embedded depth (mm): 125 ●Pre-drilled hole diameter (mm): 10 ●European Technical Approval (ETA-05/0069) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
