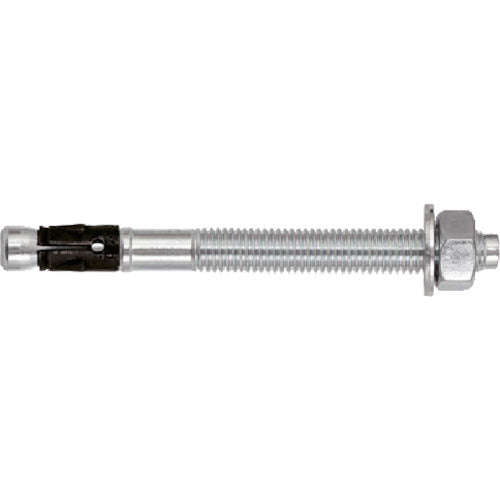

Fischer Bolt Anchor FAZ2 12/10 (20 pieces) 95419 1 box

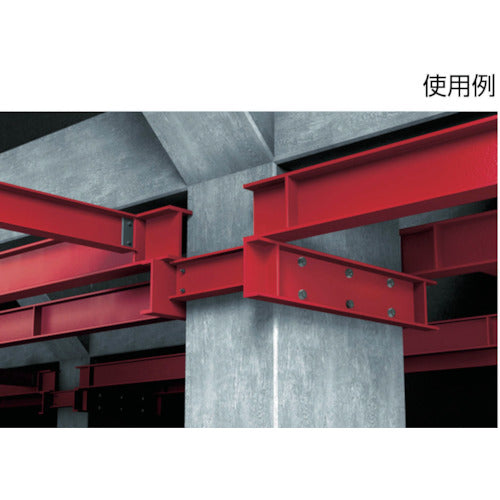

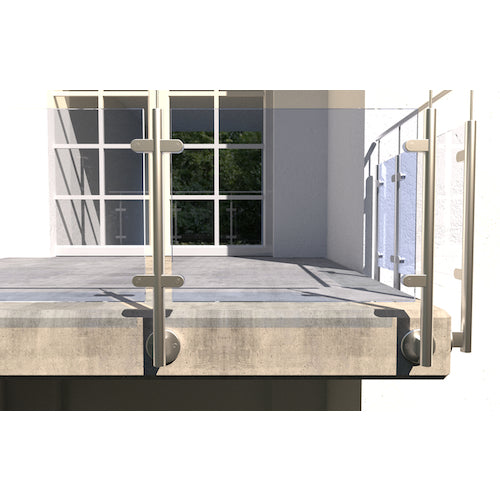

Catalogue number: 95419 Features: * Fischer's original expansion sleeve structure allows for maximum load-bearing capacity. * Shallow embedment allows for shallow drill hole depths, reducing interference with reinforcing bars and enabling quicker construction. * International certification demonstrates maximum safety and best performance. Applications: * For concrete and dense stone. * Installation of various mounting frames. * Facility construction. * Handrail exterior construction, etc. Specifications: ●Screw designation: M12 ●Screw length (mm): 61 ●Total length (mm): 110 ●Maximum thickness of object to be attached (mm): 10 ●Drill diameter (mm): 12 ●Standard installation torque (N・m): 60 ●Maximum tensile load (kN): 11.9 ●Maximum shear load (kN): 16.9 ●Effective embedment depth (mm): 70 ●Embedded depth (mm): 100 ●Pre-drilled hole diameter (mm): 12 ●European Technical Approval (ETA-05/0069) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
