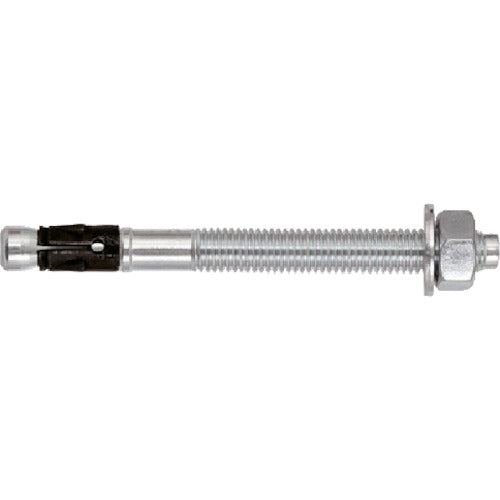

Fischer Bolt Anchor FAZ2 16/200 (10 pieces) 95967 1 box

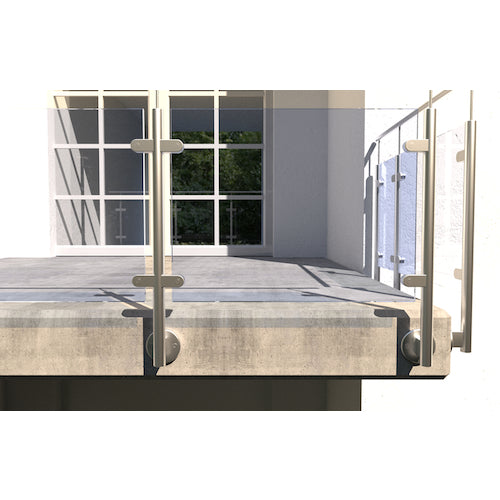

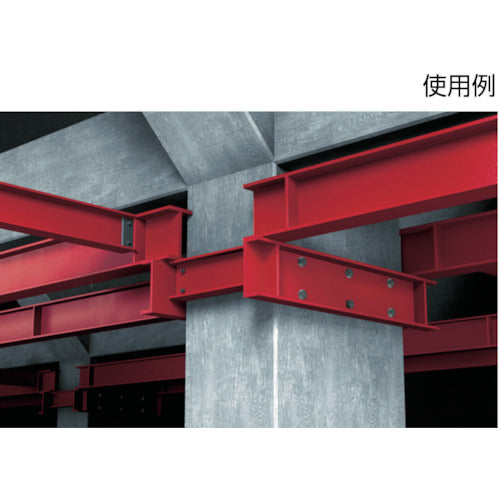

Catalogue number: 95967 Features: * Fischer's original expansion sleeve structure allows for maximum load-bearing capacity. * Shallow embedment allows for shallow drill hole depths, reducing interference with reinforcing bars and enabling quicker construction. * International certification demonstrates maximum safety and best performance. Applications: * For concrete and dense stone. * Installation of various mounting frames. * Facility construction. * Handrail exterior construction, etc. Specifications: ●Screw designation: M16 ●Screw length (mm): 189 ●Total length (mm): 323 ●Maximum thickness of object to be attached (mm): 200 ●Drill diameter (mm): 16 ●Standard installation torque (N・m): 110 ●Maximum tensile load (kN): 18.8 ●Maximum shear load (kN): 31.4 ●Effective embedment depth (mm): 85 ●Embedded depth (mm): 310 ●Pre-drilled hole diameter (mm): 16 ●European Technical Approval (ETA-05/0069) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
