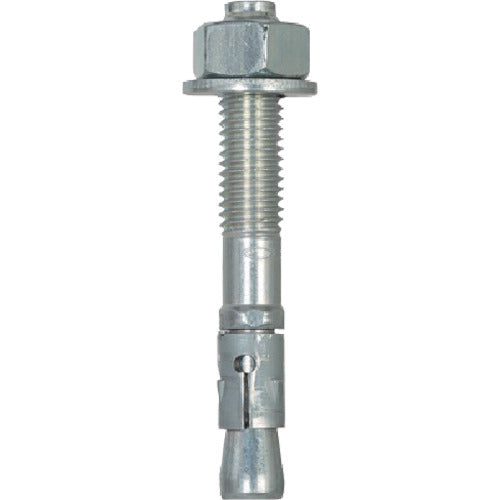

Fischer Bolt Anchor FBN2 10/10 K (50 pieces) 40947 1 box

Catalogue number: 40947 Features: ● Wedge anchor for normal concrete with excellent cost performance. ● Shallow embedment allows shallow drill hole depth, reduces interference with reinforcing bars and enables quick construction. ● International certification demonstrates maximum safety and best performance. Applications: ● For concrete and dense stone. ● Installation of various mounting frames. ● Facility construction. ● Handrail exterior construction, etc. Specifications: ●Screw designation: M10 ●Screw length (mm): 36 ●Total length (mm): 76 ●Maximum thickness of object to be attached (mm): 10 ●Drill diameter (mm): 10 ●Standard installation torque (N・m): 30 ●Maximum tensile load (kN): 15.8 ●Maximum shear load (kN): 17.0 ●Effective embedment depth (mm): 40 ●Embedded depth (mm): 68 ●Pre-drilled hole diameter (mm): 10 ●European Technical Approval (ETA-07/0211) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
