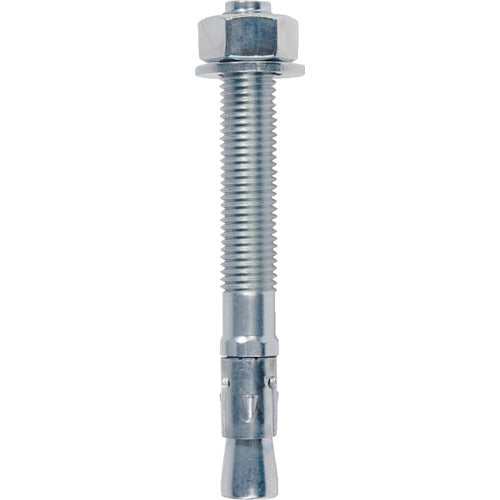

Fischer Bolt Anchor FBN2 20/80 (10 pieces) 45575 1 box

Catalogue number: 45575 Features: ● Wedge anchor for normal concrete with excellent cost performance. ● Shallow embedment allows shallow drill hole depth, reduces interference with reinforcing bars and enables quick construction. ● International certification demonstrates maximum safety and best performance. Applications: ● For concrete and dense stone. ● Installation of various mounting frames. ● Facility construction. ● Handrail exterior construction, etc. Specifications: ●Screw designation: M20 ●Screw length (mm): 90 ●Total length (mm): 237 ●Maximum attachment thickness (mm): 80 ●Drill diameter (mm): 20 ●Standard installation torque (N・m): 200 ●Maximum tensile load (kN): 76.8 ●Maximum shear load (kN): 67.0 ●Effective embedment depth (mm): 105 ●Embedded depth (mm): 215 ●Pre-drilled hole diameter (mm): 20 ●European Technical Approval (ETA-07/0211) ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
