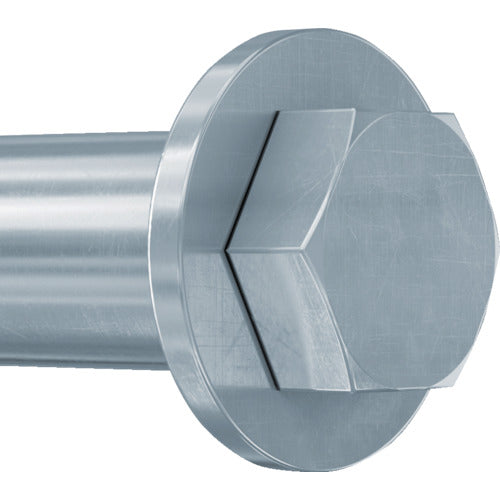

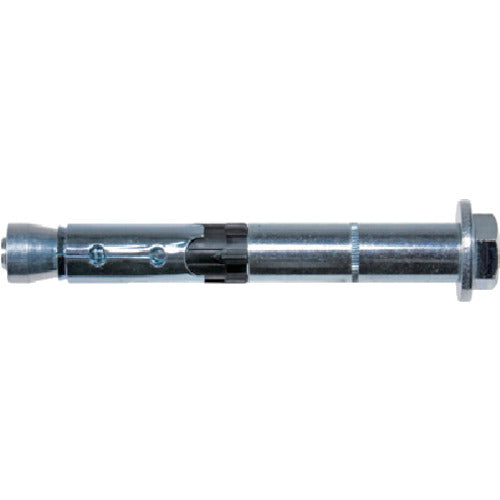

Fischer Bolt Anchor FH2 12/10 S (50 pieces) 44884 1 box

Catalogue number: 44884 Features: ●High shear load due to the interaction between the screw body and sleeve. ●Installation is possible with fewer anchors. Applications: ●For concrete and dense stone. ●Installation of various mounting frames. ●Facility construction. ●Handrail exterior construction, etc. Specifications: ●Screw size: M8 ●Total length (mm): 90 ●Maximum thickness of attachment (mm): 10 ●Drill diameter (mm): 12 ●Standard installation torque (N・m): 22.5 ●Maximum tensile load (kN): 28.5 ●Maximum shear load (kN): 42.4 ●Effective embedment depth (mm): 60 ●Two-sided width dimension (mm): 13 ●Embedded depth (mm): 90 ●Pilot hole diameter (mm): 12 ●European Technical Approval (ETA-07/0025) ●International Standards Council certified ●Hexagonal head type ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
