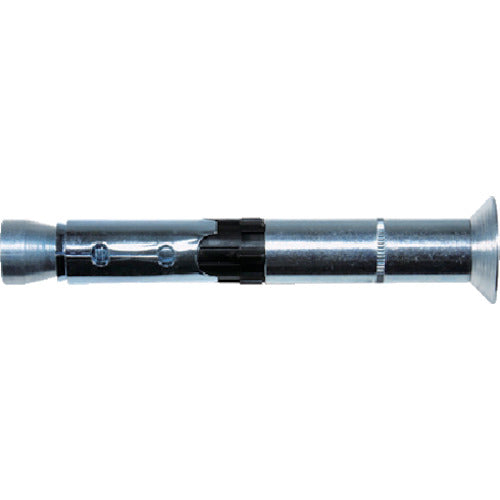

Fischer Bolt Anchor FH2 12/50 SK (25 pieces) 44919 1 box

Catalogue number: 44919 Features: ●High shear load due to the interaction between the screw body and sleeve. ●Installation is possible with fewer anchors. ●International certification demonstrates maximum safety and best performance. Applications: ●For concrete and dense stone. ●Installation of various mounting frames. ●Facility construction. ●Handrail exterior construction, etc. Specifications: ●Screw size: M8 ●Total length (mm): 125 ●Maximum thickness of attachment (mm): 50 ●Drill diameter (mm): 12 ●Standard installation torque (N・m): 22.5 ●Maximum tensile load (kN): 28.5 ●Maximum shear load (kN): 42.4 ●Effective embedment depth (mm): 60 ●Two-sided width dimension (mm): 5 ●Number per box: 25 ●European Technical Approval (ETA-07/0025) ●International Standards Council certified ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
