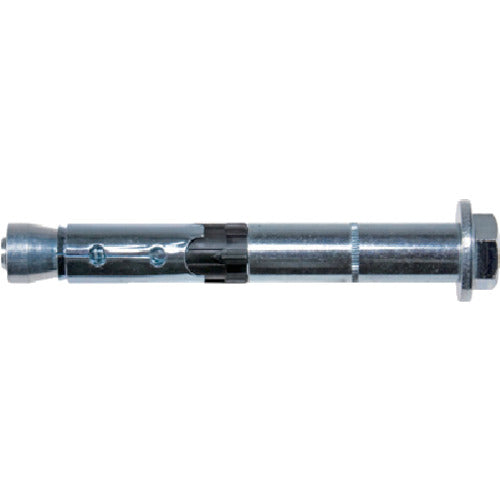

Fischer Bolt Anchor FH2 15/10 S (25 pieces) 44887 1 box

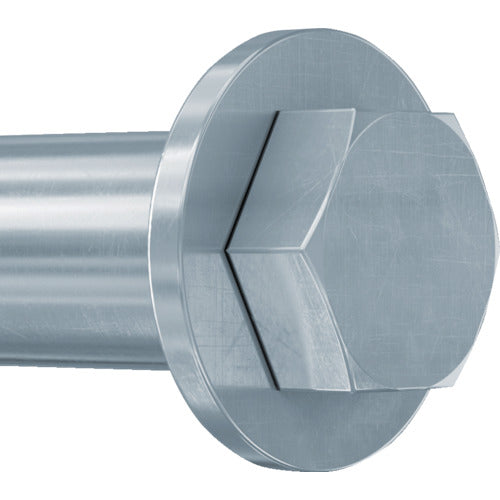

Catalogue number: 44887 Features: ●High shear load due to the interaction between the screw body and sleeve. ●Installation is possible with fewer anchors. Applications: ●For concrete and dense stone. ●Installation of various mounting frames. ●Facility construction. ●Handrail exterior construction, etc. Specifications: ●Screw size: M10 ●Total length (mm): 106 ●Maximum thickness of object to be attached (mm): 10 ●Drill diameter (mm): 15 ●Standard construction torque (N・m): 40 ●Maximum tensile load (kN): 35.8 ●Maximum shear load (kN): 71.7 ●Effective embedment depth (mm): 70 ●Two-sided width dimension (mm): 17 ●Embedded depth (mm): 100 ●Pilot hole diameter (mm): 15 ●European Technical Approval (ETA-07/0025) ●International Standards Council certified ●Hexagonal head type ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
