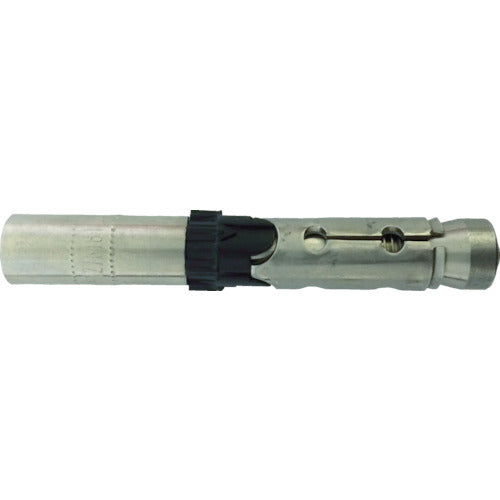

Fischer Bolt Anchor FH2 15/M10 I (25 pieces) 519014 1 box

Catalogue number: 519014 Features: *The functional principle of using a hexagonal wrench allows for quick deformation and expansion, and comfortable upward construction. *Suitable for pre-installation. *Metric internal thread for optimal adaptation to match the object to be attached. Applications: *For concrete and dense stone. *Installation of various frames. *Equipment construction. *Handrail exterior construction, etc. Specifications: ●Screw designation: M10 ●Screw length (mm): 25 ●Total length (mm): 90 ●Drill diameter (mm): 15 ●Standard installation torque (N・m): 25 ●Maximum tensile load (kN): 38.7 ●Maximum shear load (kN): 23.1 ●Effective embedment depth (mm): 70 ●Embedment depth (mm): 95 ●Pre-drilled hole diameter (mm): 15 ●Hexagonal hole (mm): 6 ●Number of pieces per box: 25 ●European Technical Approval (ETA-07/0025) ●Internal thread type ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
