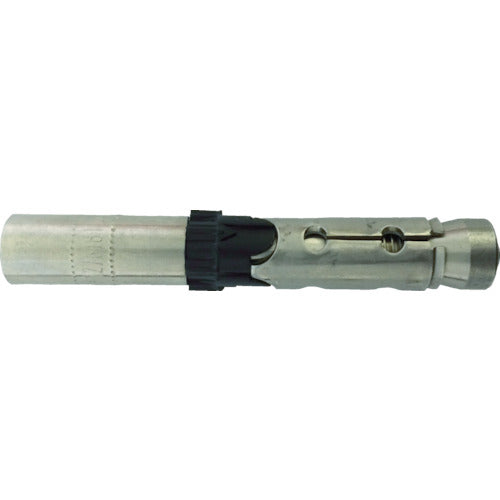

Fischer Bolt Anchor FH2 15/M12 I (20 pieces) 519015 1 box

Catalogue number: 519015 Features: ●The functional principle of using a hexagonal wrench allows for quick deformation and expansion, allowing for comfortable upward construction. ●Suitable for pre-installation. ●Metric internal thread for optimal adaptation to match the object being attached. Applications: ●For concrete and dense stone. ●Installation of various frames. ●Equipment construction. ●Handrail exterior construction, etc. Specifications: ●Screw designation: M12 ●Screw length (mm): 25 ●Total length (mm): 90 ●Drill diameter (mm): 15 ●Standard installation torque (N・m): 25 ●Maximum tensile load (kN): 38.7 ●Maximum shear load (kN): 23.1 ●Effective embedment depth (mm): 70 ●Embedment depth (mm): 95 ●Pilot hole diameter (mm): 15 ●Hexagonal hole (mm): 8 ●Number of pieces per box: 20 ●European Technical Approval (ETA-07/0025) ●Internal thread type ●Boxed Material/Finish: ●Steel ●Surface treatment: Zinc plating (trivalent chromate treatment)
