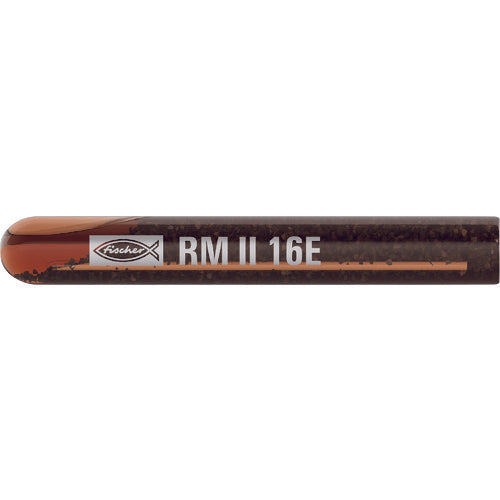

Fischer Resin Anchor FEB RM2 16E Rotation/Impact Type (10 pieces) 539804 1 box

Catalog number: 539804 Features: ● Suitable for ETA (European Technical Assessment) cracked and non-cracked concrete. ● Styrene-free (no styrene smell). ● Contains no VOC14 chemical substances (formaldehyde, etc.). ● Can be applied underwater. ● Fast curing (curing time of 5 minutes at a concrete temperature of 21°C). Applications: ● Earthquake-resistance reinforcement work, reinforcement bars for expansion and renovation, tunnel construction, installation of facilities and equipment. ●For normal concrete and dense natural stone Specifications: ●Outer diameter (mm): 16.5 ●Total length (mm): 123 ●Capacity (cm3): 22.0 ●Capacity (ml): 22.0 ●Bolts used (irregular steel bars): M16 ●Drill diameter (irregular steel bars) (mm): 18.0 ●Drilling depth (mm): 130 ●Maximum tensile load (kN): 148.0 ●Long-term allowable tensile load (kN): 13.7 ●Short-term allowable tensile load (kN): 27.4 ●Rotational and impact type ●European technical certification ETA obtained ●Fire resistance European fire resistance class R120 ●Boxed Material/Finish: ●Vinyl ester resin Note: ●The maximum tensile load is the value when the concrete strength is Fc21N/m［［Ｍ２］］. ●The expiration date is 36 months from the date of manufacture.
