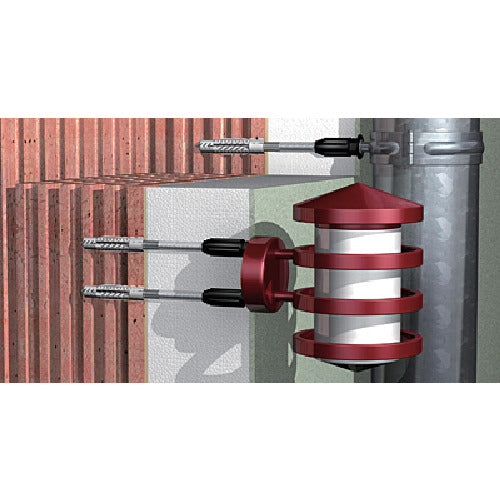

Catalog number: 045702 Features: ● A system that can penetrate and fasten from plaster or mortar to insulation. ● Thermal barrier (black head) minimizes heat loss. ● Professional installation can be done easily and quickly without using special tools, nuts or spacers. Applications: ● For ordinary concrete, brick, lightweight porous concrete, ALC. Specifications: ● Length (mm): 160 ● Minimum drilling depth (mm): 160 ● Drill diameter (mm): 12 ● Mounting bolt size (mm): M10 ● Maximum mounting thickness (mm): 80-100 ● Screw-in type ● Fastening for external insulation Material/Finish: ● Steel + Polyamide 6 (PA6) + Polypropylene (PP) Caution: ● Use with the included plug anchor.
