Fischer N Hammer Fix N6x40/10F (100 pieces) 513840 1 box

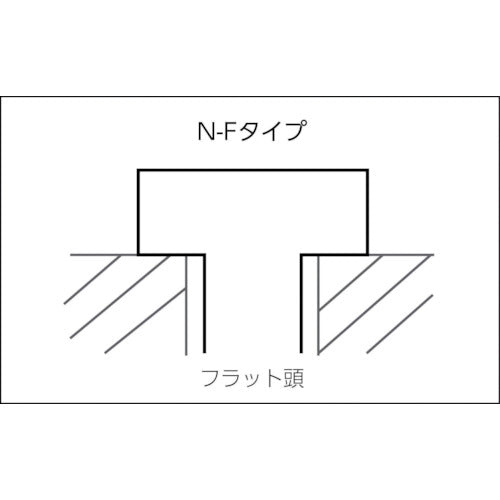

Catalog number: 513840 Features: ● The plug head is flat. ● The screw is set in the plug. ● It allows for quick work by simply hammering it in. ● The hammering stopper reduces the expansion of the plug during hammering. Applications: ● For ALC and concrete. Specifications: ● Outer diameter (mm): 6 ● Length (mm): 40 ● Maximum attachment thickness (mm): 10 ● Drilling depth (mm): 55 ● Maximum tensile load (kN): 1.4 ● Pilot hole diameter (mm): 6 ● Pilot hole diameter (mm) concrete: 6 ● Pilot hole diameter (mm) ALC: 6 ● Hammer-in resin plug Material/Finish: ● Body: Polyamide resin PA6 (nylon 6) ● Screw: Steel Notes: ● Ordinary concrete Fc 20 N/mm2 ● Specified drilling. (Cutting chips are removed) ● The screw length protruding from the plug tip by more than the screw diameter. ● Loads, etc. vary depending on various conditions. ● Safety factors must be taken into consideration.
