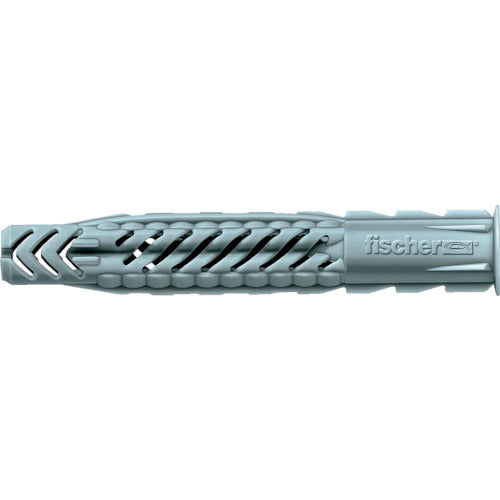

Fischer UX plug UX 8 x 50R (100 pieces) 77870 1 box

Catalog number: 77870 Features: ●This is the latest version of the Fischer plug anchor S type. ●Anti-rotation allows it to function optimally with a wide variety of building materials. ●The screw diameter used is 4.5 to 6 mm. Applications: ●For concrete and ALC. Specifications: ●Nominal diameter (mm): 8 ●Length (mm): 50 ●Drilling depth (mm): 60 ●Maximum tensile load (kN): 2.5 ●Maximum tensile load (kN) concrete: 2.5 ●Maximum tensile load (kN) ALC: 0.3 ●Pilot hole diameter (mm): 8 ●Pilot hole diameter (mm) concrete: 8 ●Pilot hole diameter (mm) ALC: 8 ●Compatible screws: Wood screws, tapping screws Material/Finish: ●Polyamide resin PA6 (nylon 6) Notes: ●Normal concrete Fc 20 N/mm2 ●Specified drilling. (Cutting chips are removed) ●Thread length protruding from the plug tip by more than the screw diameter. ●Loads, etc. vary depending on various conditions. ●Safety factors must be considered.
