Phoenix Contact 2-wire rod terminal AI-TWIN2X2.5-10BU 100 pieces

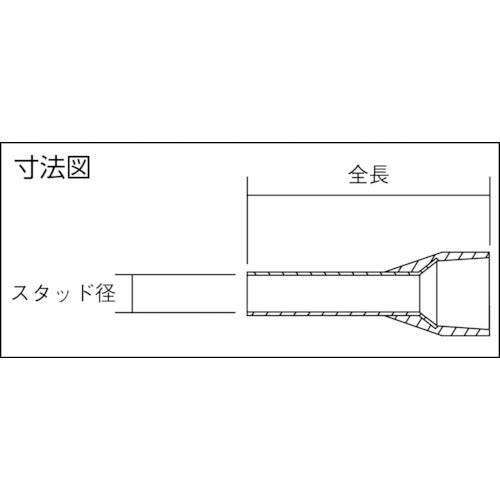

Catalog number: AI-TWIN2X2.5-10BU Features: ●Ideal for jumper wiring, etc. ●Prevents the core wire from coming apart, and improves the reliability of insertion into terminal blocks that support single wires. ●Can crimp two wires at the same time. ●Insulating sleeves are color-coded to help distinguish between wire sizes. Specifications: ● Wire compatibility range Stranded wire [MM2]: 2.0-3.0 ● Wire clamping range Stranded wire (MM2): 2.0-3.0 ● Wire clamping range Nickel stranded wire (MM2): 2.0-3.0 ● Wire clamping range AWG: 14 ● Wire compatibility range AWG: 14 ● Color: Blue ● Total length (mm): 18.5 ● Stud diameter (mm): 2.9 ● External dimension (mm): 3.3 ● Internal dimension (mm): 2.9 ● JIS standard product: DIN standard product ● Wire compatibility range Stranded wire mm [squared]: 2 x 2.50 ● Wire clamping range Solid wire mm: All stranded wire ● Cross-sectional area: 2 x 0.5 mm [squared] Material/Finish: ● Metal part: E-CU (tin plated) ● Insulating sleeve: Polypropylene (UL94HB)
