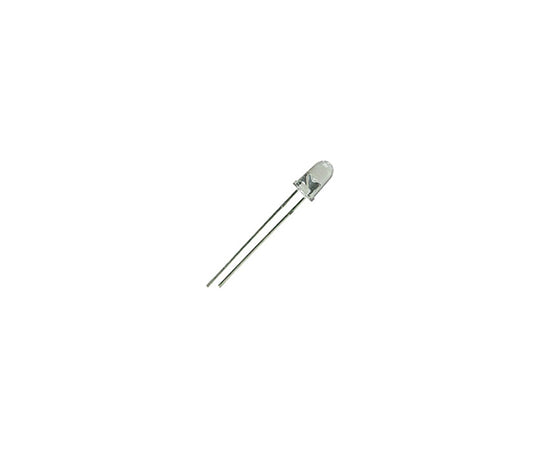

Phototransistor IR + Visible Light 50 ° Through-hole mounting 5 mm (T-1 3/4) 1 bag (10 pieces) SFH 300-3/4 1 bag (10 pieces)
Phototransistor IR + Visible Light 50 ° Through-hole mounting 5 mm (T-1 3/4) 1 bag (10 pieces) SFH 300-3/4 1 bag (10 pieces)
Regular price
¥869
Regular price
Sale price
¥869
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Phototransistor 5mm Package Quantity: 1 bag (10 pieces)
Detection spectrum: infrared, visible light
Typical fall time: 10μs
Typical rise time: 10μs
Number of channels: 1
Maximum photocurrent: 7700μA
Maximum dark current: 50nA
Half-width sensitivity angle: 50°
Polarity: NPN
Number of pins: 2
Mounting type: Through-hole mounting
Package type: 5mm (T-1 3/4)
Dimensions: 5.9 x 5.9 x 9mm
Collector current: 50mA
Minimum detection wavelength: 450nm
RoHS Compliance Status: Compliant
Code: 654-8031
