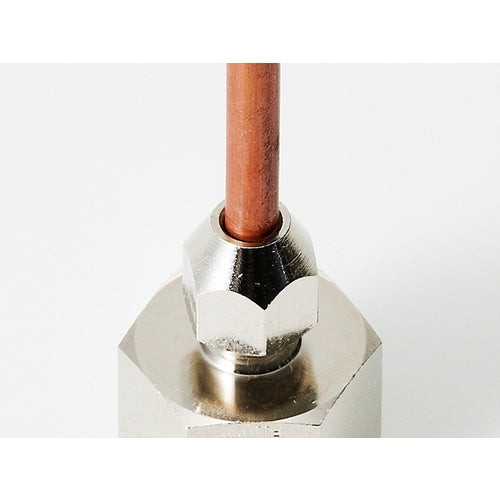

Catalog number: RH-6B-R Features: ●Compression ring type fitting where the tube is inserted and the nut is tightened. ●No special tools or fire are required. Applications: ●Various plant instrumentation air, oil lines, etc. Specifications: ●Applicable copper pipe outer diameter (mm): φ6 ●Thread: 8A ●Maximum operating pressure (MPa): 4.9 ●Liquid temperature (℃): -45 to +125 ●Half union
