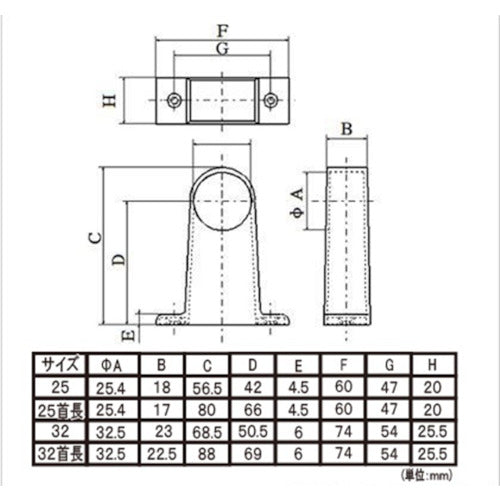

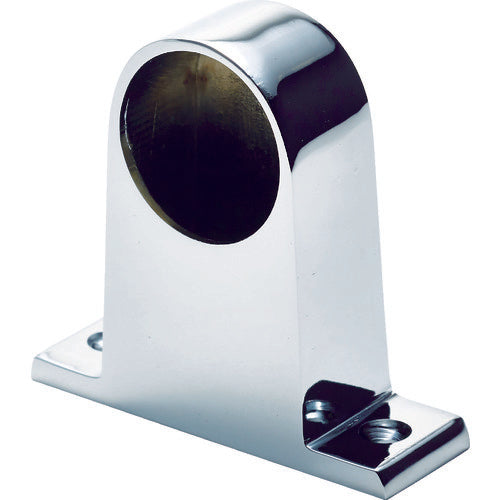

Catalog number: B-28103 Features: ●It is taller than a general socket, and the pipe part to be attached can be fixed with a set screw. Specifications: ●Applicable pipe diameter (mm): 25 ●Thickness (mm): 18 ●C (mm): 56.5 ●B (mm): 18.5 ●D (mm): 41 ●E (mm): 4.5 ●F (mm): 60 ●G (mm): 20 ●Type: Stop hole ●A (mm): 25.4 ●Color: Chrome plated finish ●Height (mm): 56.5 Material/Finish: ●Zinc die cast ●Surface treatment: Chrome plated finish
