Fujitoku Half Elbow Φ6 x 1/8 Stainless Steel Pipe W Ferrule Fitting SUS316 ME-6-1 1 pc

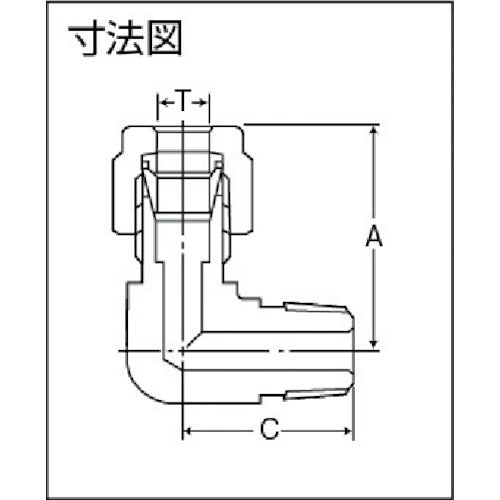

Catalog number: ME-6-1 Features: ● Consists of a main body, nut, and sleeve (rear ferrule and front ferrule), insert the pipe and tighten with a wrench. Applications: ● Applicable stainless steel pipe standards. Specifications: ● Applicable pipe outer diameter T (mm): 6 ● Thread: R1/8 ● Hexagonal face size (mm): 14 ● Dimensions (mm) A: 28.4 ● Dimensions (mm) C: 22.0 ● Fluids used: gas, steam, oil, water, etc. ● Fluid temperature: -196 to 600°C ● Operating pressure: 21MPa Material/Finish: ● Stainless steel (SUS316)
