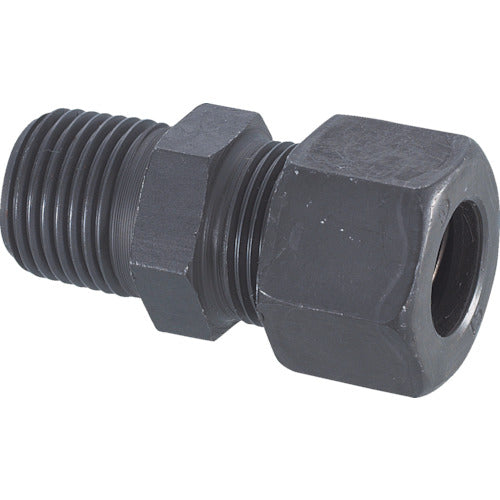

Catalog number: S-6X1/8 Features: ●Excellent airtightness and vibration resistance. ●No end processing such as welding, threading, or flaring is required. ●Can be used over a wide temperature range as no sealing material is used. ●Please contact us separately for gas pipe types. Applications: ●Fittings for carbon steel. Specifications: ●Thread: R1/8 ●Hexagonal face (mm): 14 ●Dimension L (mm): 34.5 ●Applicable pipe outer diameter A (mm): 6 ●Dimension (mm) L: 34.5 ●Fluids used: oil, air, water, steam ●Fluid temperature: -20 to 250°C ●Operating pressure: 21MPa ●Applicable steel pipes: OST pipe, STS370, PG370, PT370 Material/Finish: ●Carbon steel
