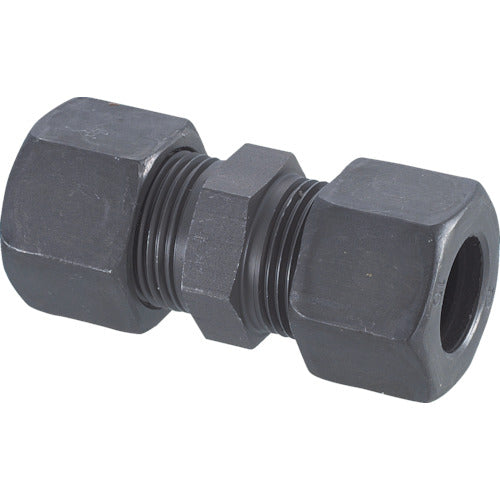

Catalog number: J-8 Features: ●Excellent airtightness and vibration resistance. ●No end processing such as welding, threading, or flaring is required. ●Can be used over a wide temperature range because no sealing material is used. ●Please contact us separately for gas pipe types. Applications: ●Fittings for carbon steel. Specifications: ●Hexagonal face (mm): 17 ●Maximum operating pressure (MPa): 21 ●Compatible fluids: oil, air, water, steam ●Liquid temperature (℃): -20 to 250℃ ●Dimension L (mm): 52 ●Dimension (mm) L: 52 ●Thread: - ●Applicable pipe outer diameter A (mm): 8 ●Used fluids: oil, air, water, steam ●Fluid temperature: -20 to 250℃ ●Used pressure: 21MPa ●Applicable steel pipes: OST pipe, STS370, PG370, PT370 Material/Finish: ●Carbon steel
