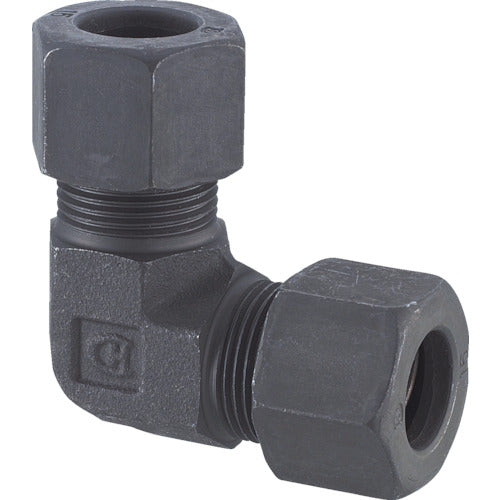

Fujitoku Union Elbow Φ10 Steel Pipe Bite Fitting L-10 1 Piece

Catalog number: L-10 Features: ●Excellent airtightness and vibration resistance. ●No end processing such as welding, threading, or flaring is required. ●Can be used over a wide temperature range because no sealing material is used. ●Please contact us separately for gas pipe types. Applications: ●Fittings for carbon steel. Specifications: ●Hexagonal face (mm): 19 ●Maximum operating pressure (MPa): 21 ●Compatible fluids: oil, air, water, steam ●Liquid temperature (℃): -20 to 250℃ ●Dimension L (mm): 34.5 ●Thread: - ●Applicable pipe outer diameter A (mm): 10 ●Dimension (mm) L: 34.5 ●Used fluids: oil, air, water, steam ●Fluid temperature (℃): -20 to 250℃ ●Used pressure: 21MPa ●Applicable steel pipes: OST pipe, STS370, PG370, PT370 Material/Finish: ●Carbon steel
