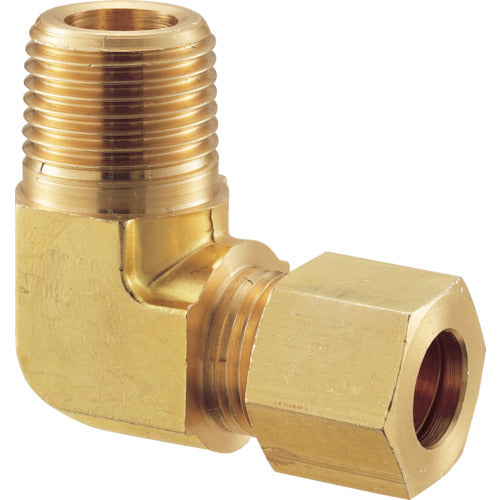

Fujitoku Brass Half Elbow Φ6 x 1/8B for Copper Pipes, Bite-type Fitting, GL2-6X1/8B, 1 Piece

Catalog number: GL2-6X1/8B Features: ● The cutting edge of the ring-shaped sleeve bites into the pipe (holds the pipe), and the curved part is compressed by a strong spring action (maintains sealing performance), preventing the nut from loosening. Applications: ● Copper pipe fittings. Specifications: ● Thread: R1/8 ● Hexagonal face (mm): 14 ● L (mm): 29.5 ● Maximum operating pressure (MPa): 15 ● Suitable fluids: oil, steam, water ● Liquid temperature (℃): -20 to 150℃ ● Applicable copper pipe outer diameter P (mm): 6 ● Fluids used: oil, steam, water ● Fluid temperature: -20 to 150℃ ● Operating pressure: 15MPa Material/Finish: ● Body: Free-cutting brass bar (C3604 BD-F) ● Nut: Forged brass bar (C3771 BD)
