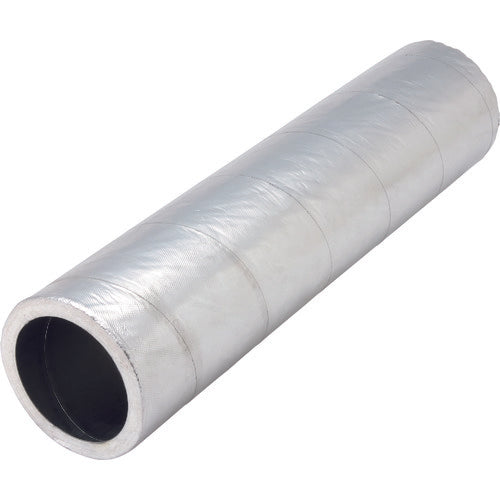

Fujimori Fuji Air Duct M Type 150mm diameter 910L FADM-910-150 1 unit

Catalog number: FADM-910-150 Features: ●Since the 20mm thick special glass fiber felt insulation material is made into a single cylinder, no on-site insulation work is required. Uses: ●For kitchen exhaust ducts. Specifications: ●Length (m): 0.91 ●Inner diameter (mm): 150 ●Outer diameter (mm): 190 ●Nominal diameter (mm): 150 ●Width (mm): 190 ●Size: 150φ ●Usage temperature range (℃): -10 to 100 ●Steel plate thickness (mm): 0.5 ●Insulation material thickness (mm): 20 ●Name: FADM straight pipe ●Usage temperature range (℃): -10 to 100 ●Usage temperature range: -10 to 100℃ Materials/Finish: ●Outermost layer: Aluminum glass cloth ●Insulation material: Special glass fiber felt ●Innermost layer: Galvanized steel plate
