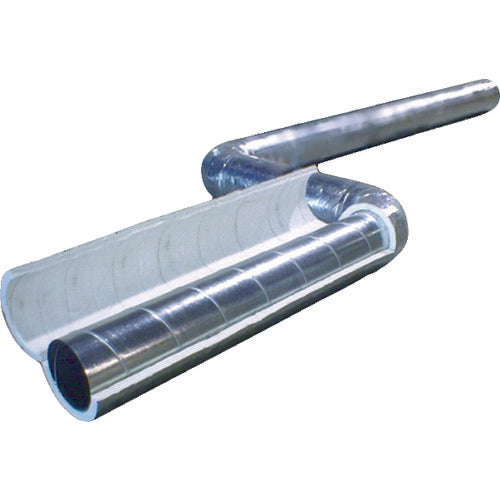

Fujimori Fuji Cover M 45 degree elbow 150φ FCME-45-150 1 piece

Catalog number: FCME-45-150 Features: ● Fuji Cover has excellent insulation performance and is a "performance evaluation certified product for fire and disaster prevention equipment, etc." by the Japan Fire Equipment Safety Center. ● Fuji Cover, which has a thin insulation material, exhibits "disaster prevention and insulation performance equal to or greater than that of 50 mm thick rock wool," contributing to space saving in the ceiling space. ● Because it is easy to install, "aluminum glass cloth tape" is used for the overlap of the exterior material, and the insulation material has excellent pressure resistance. ● Does not contain formaldehyde. Applications: ● Insulation material for kitchen exhaust in general houses and apartment buildings. Specifications: Inner diameter (mm): 155 Outer diameter (mm): 195 Nominal diameter (mm): φ150 Performance rating certification number: Rating No. 12-065 Thermal conductivity: 0.045 W/m・K (average 70℃) Material/Finish: Surface material: Aluminum glass cloth Insulation material: Special glass fiber felt A certain width of special glass fiber felt is processed in a molding machine, laminated in a spiral shape, and made into a tube, and the surface material is covered with aluminum glass cloth to create an insulation cover. Thickness 20 mm, density 180 kg/m3.
