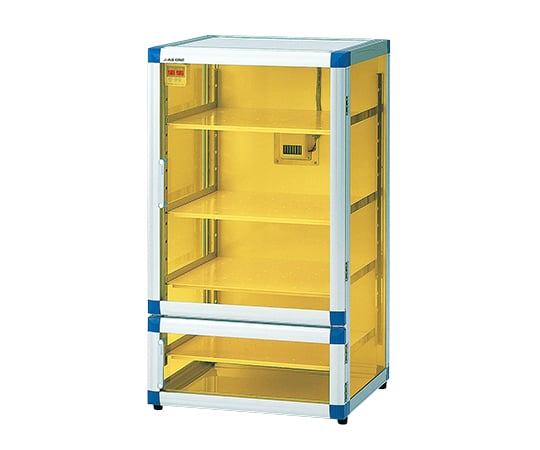

Frosted Dry Desiccator BG (UVC & Antistatic) 574 x 611 x 1085mm Reinforced Plastic Shelf U-BG-KPA 1pc
Frosted Dry Desiccator BG (UVC & Antistatic) 574 x 611 x 1085mm Reinforced Plastic Shelf U-BG-KPA 1pc
Regular price
¥260,700
Regular price
Sale price
¥260,700
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
For storing electronic components that are sensitive to UV rays!
This standard frosted dry desiccator now features a distinctive UV-cut and anti-static PVC panel.
Uses a Peltier module with high dehumidification capacity.
By using a capacitance type humidity sensor, it is possible to measure humidity with high accuracy even in low humidity ranges.
Energy-saving design that automatically reduces power consumption when the humidity is near the set humidity level or in low humidity ranges. External dimensions (mm): 574 x 611 x 1085
Shelf material: Reinforced plastic
Dehumidification method: Cooling dehumidification using a Peltier module
Humidity setting range: 5 to 50% RH
Humidity control range: Approximately 15% RH to indoor humidity (after 12 hours, when no load is applied inside the cabinet, depending on the usage environment)
De-icing method: De-icing by DC fan blowing
Humidity display accuracy: ±6% *At ambient temperature of 25°C
Humidity control method: ON/OFF control by relative humidity digital input
Humidity sensor: Capacitive humidity sensor
Temperature sensor: Bandgap temperature sensor
Operating noise: Normal/approx. 51dB, Energy saving/approx. 41dB
Power supply: AC100V 50/60Hz (unit power cord length: approx. 2.5M)
Power consumption: Normal/90W, Energy saving/55W
Material: Body: UV-resistant, antistatic PVC (polyvinyl chloride resin) and aluminum composite panel, Frame: Aluminum sash
Casters: Nylon (with stoppers)
Included shelves: 4
Shelf mounting pitch: 50mm
Minimum shelf spacing: 35mm
Shelf load capacity: Approx. 10kg/sheet
Product weight: 25kg
