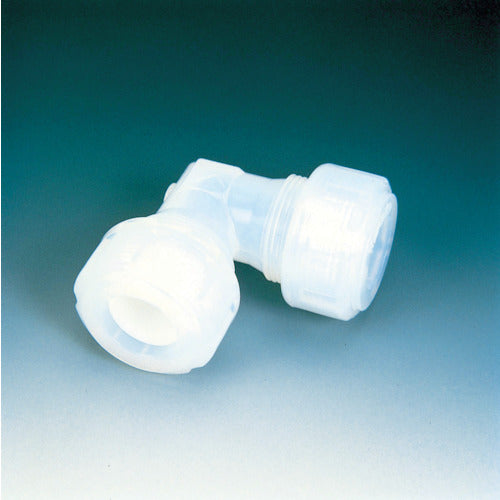

Fluorochemical PFA Union Elbow (F Lock Seal) LFU-10 NR1046-003 1 pc

Catalog number: NR1046-003 Features: ●Excellent chemical resistance, heat resistance, non-stickiness, high electrical insulation, and slip resistance. ●Used for connecting fluororesin tubes. ●The F-lock seal can be attached by making a groove on the outside of the tube with a grooving cutter (sold separately). ●It can be firmly fixed even without a grooving cutter, but pressure resistance will decrease. Specifications: ●Compatible tube outer diameter (mm): 10 ●Compatible fluids: acids, alkalis, etc. Material/Finish: ●Fluororesin (PFA/PTFE) Notes: ●Standard is the F-lock seal specification, but an abacus bead specification is also available, so please contact us.
