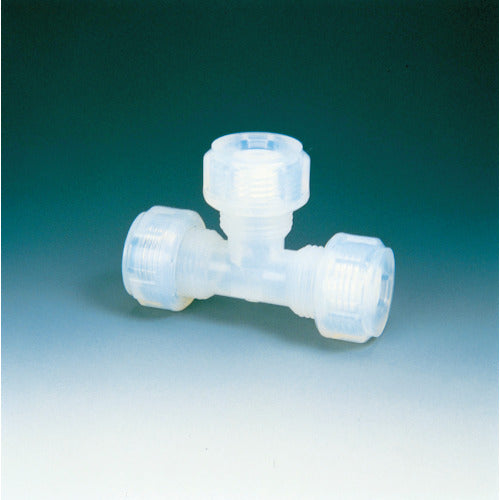

Fluorochemical PFA Union Tee (F Lock Seal) TFU-10 NR1050-003 1 pc

Catalog number: NR1050-003 Features: ●Used for connecting fluororesin tubes. ●Standard is F-lock seal specification, which can be replaced with abacus beads. ●F-lock seal can be attached by making a groove on the outside of the tube with a grooving cutter (sold separately). ●It can be firmly fixed without a grooving cutter, but the pressure resistance will decrease. ●Excellent heat resistance, non-stickiness, high electrical insulation, and slipperiness. ●Abacus type seal does not require a grooving cutter. Specifications: ●Applicable tube outer diameter (mm): 10 ●Applicable fluid: Acid, alkali, etc. Material/Finish: ●Fluororesin (PFA/PTFE) Note: ●Standard is F-lock seal specification, but abacus bead specification is also available, so please contact us.
